FUJI DIE
Fuji Die T Type Electroplated Grinding Tool
Manufacturer: Fuji Die Co., Ltd.
Model: T Type

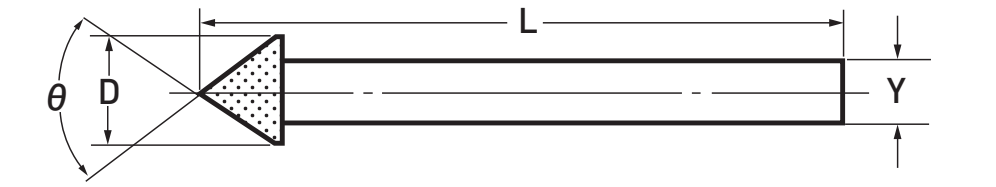

Specifications And Dimensions (Unit : mm)
| Model No. | D | Y | θ | L |
|---|---|---|---|---|
| T3-40 | 3 | 3 | 40 | 40 |
| T3-60 | 3 | 3 | 60 | 40 |
| T3-90 | 3 | 3 | 90 | 40 |
| T5-40 | 5 | 3 | 40 | 40 |
| T5-60 | 5 | 3 | 60 | 40 |
| T5-90 | 5 | 3 | 90 | 40 |
| T10-40 | 10 | 6 | 40 | 60 |
| T10-60 | 10 | 6 | 60 | 60 |
| T10-90 | 10 | 6 | 90 | 60 |
