Hakaru FG-102 Bar Graph Meter (2-Point Indication)

Manufacturer: HAKARU PLUS CORPORATION
Model: FG-102

Scale Length 100mm, 2-Point Indicator

Model

FG-102-(1)-(2)

(1) Power Supply

Code	Description
A	AC85 to 132V
B	DC24V ±15%
C	DC5V ±5%, non-isolated
M	DC5V ±5%
H	AC170 to 264V

(2) Input

Code	Input Range
1	0 to 1mA
2	4 to 20mA
3	0 to 1V
4	1 to 5V
5	0 to 5V
0	Other

Special Specification

Horizontal mounting

How to Order Example

Model: FG-102-A-4
Bar graph color: Left side: Red, Right side: Green
Scale: Left side: 0 to 100, Right side: 0 to 50°C
Special specification:

Device Specifications

Housing: ABS resin case, Munsell N1.5
Front window: Acrylic resin, transparent
Nameplate: Munsell N1.5

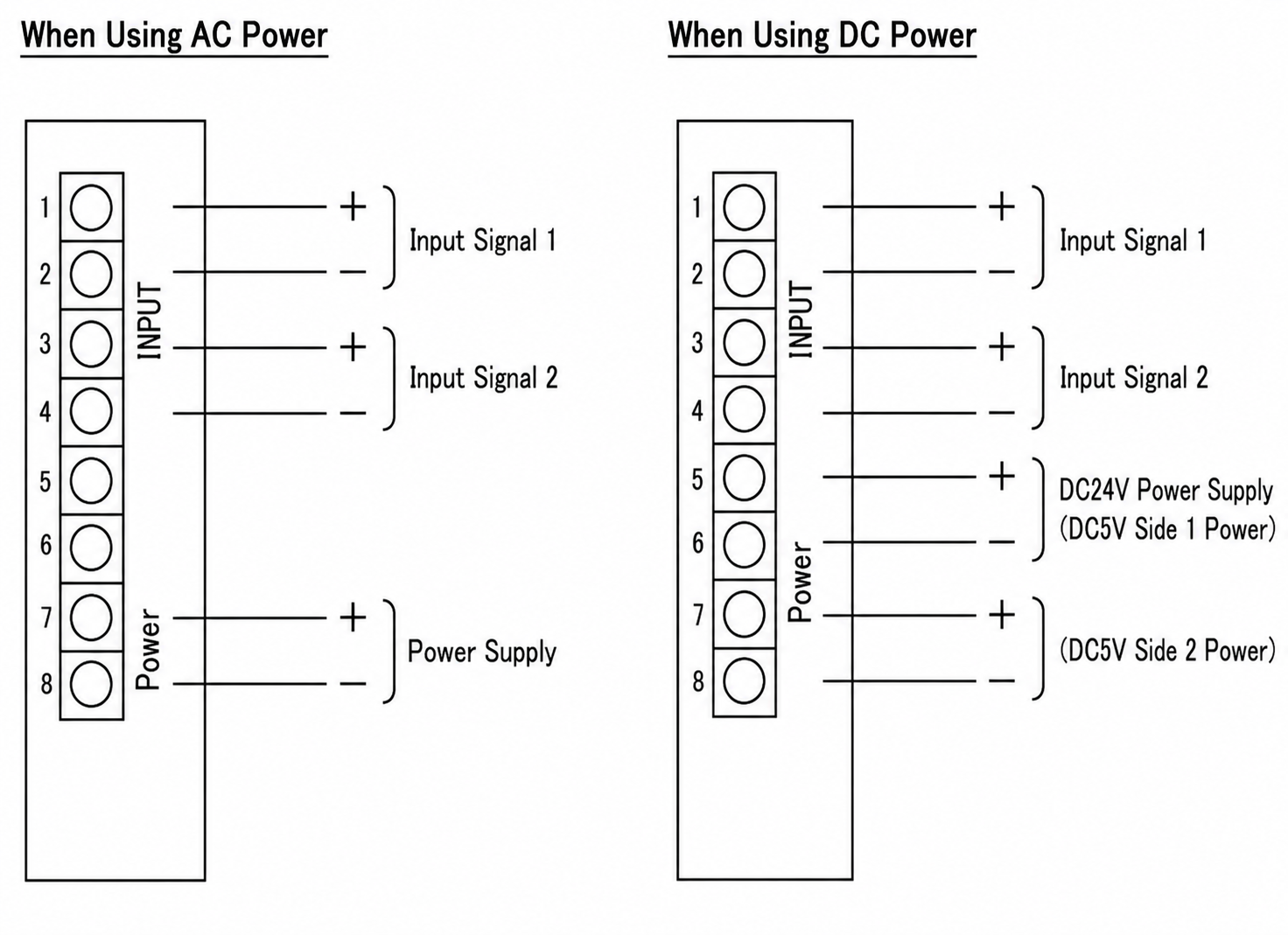

Connection: M3 screw terminal
Scale plate: Black colored aluminum, white characters, white scale lines
Scale length: 100mm
Display color: Red, yellow, or green LED. Please specify.
Number of bar dots: 101
Input overrange: Display blinks
Isolation: Input and power supply are isolated, except C type.
Zero / span adjustment: By trimmer inside the panel

Input Specifications

Input Range	Input Resistance
0 to 1mA	200Ω
4 to 20mA	10Ω
0 to 1V	100kΩ or more
1 to 5V	250kΩ
0 to 5V	250kΩ

Installation Specifications

Power supply: AC85 to 132V 5VA, AC170 to 264V 5VA
DC24V ±15% 4W, DC5V ±5% 2W
Operating temperature range: 0 to +50°C
Operating humidity range: 40 to 85%RH, no condensation

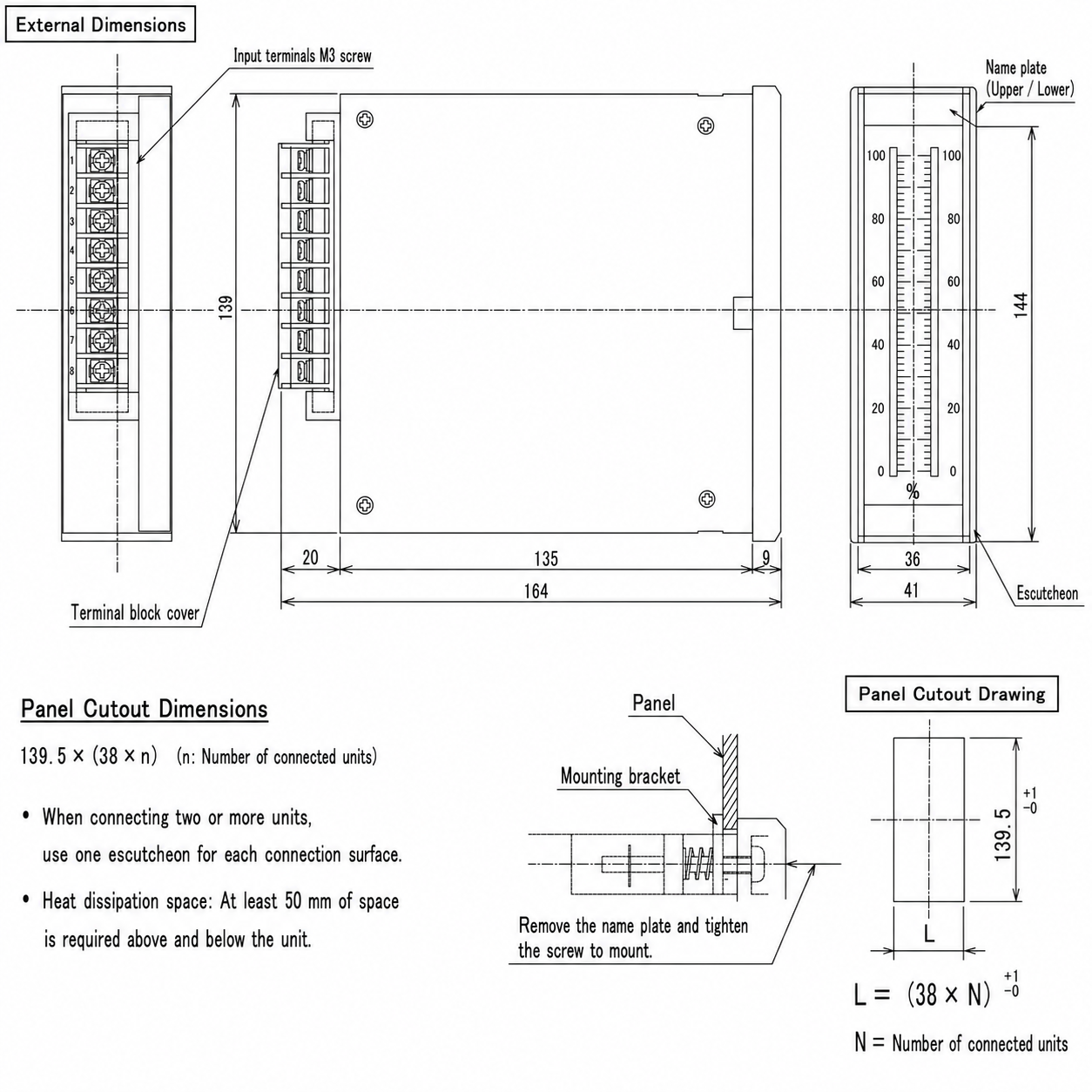

Dimensions: W36 × H144 × D160
Mounting method: Vertical mounting. Please specify for horizontal mounting.
Mass: Approx. 400g

Performance

Reference accuracy: ±(1% + 1digit)
Response time: 0.5 seconds
Insulation resistance: Electrical circuits collectively to external case, 50MΩ or more / DC500V
Dielectric strength: Electrical circuits collectively to external case, AC1500V for 1 minute
Input to AC power supply: AC1500V for 1 minute
Input to DC24V power supply: AC500V for 1 minute
Input to DC5V power supply: AC500V for 1 minute
C type excluded.
Between Input 1 and Input 2: AC500V for 1 minute
