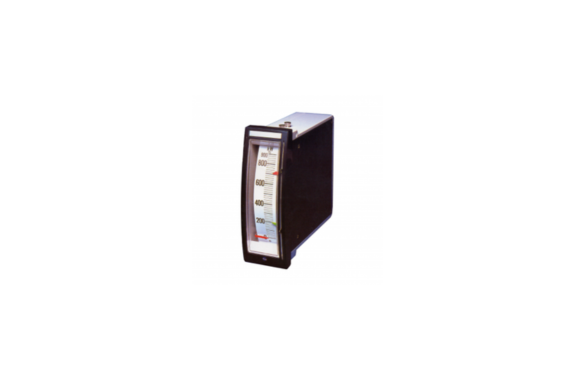

Manufacturer: HAKARU PLUS CORPORATION
Model: FH-120

Model / Specifications

Scale length: 80mm
Class: 1.5 class
Pointer shape: Large type, red
Escutcheon frame: None
Base material: ABS resin

DC Ammeter

Model: FHC-120, moving-coil type

When exceeding 20A, use an external shunt with a 60mV meter.

DC Voltmeter

Model: FHC-120, moving-coil type

When exceeding 300V, use an external multiplier with a 1mA meter.

Receiver Indicator

Model: FHC-120, moving-coil type

AC Ammeter

Model: FHK-120, RMS response type

When exceeding 30A, use an external CT with a 5A meter.

AC Voltmeter

Model: FHK-120, rectifier type

How to Order Example

Product name: Receiver indicator
Model: FHC-120
Scale: 0 to 1000kW
Input range: 4 to 20mA
Special specification:

Connection Diagram

Refer to Series Specifications.

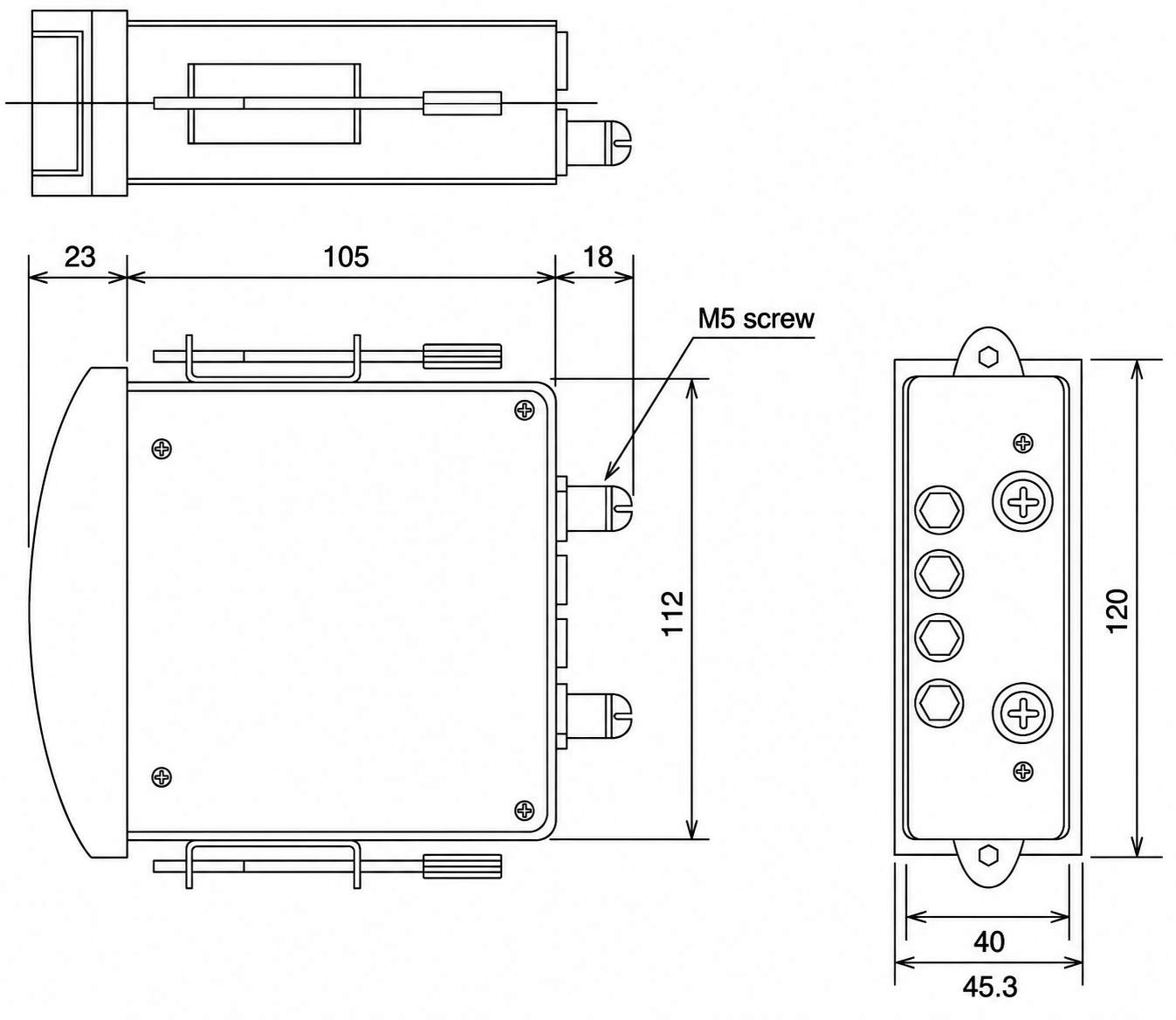

Outline Drawing (Unit: mm)

FH□-120
Mass: 550 g (for DC 1 mA meter)

Accessory Outline Drawing
Refer to the Series Specifications

Panel Cutout Dimensions

For mounting n units: 113 × [(45.3 × n) − 5]
