Manufacturer: HAKARU PLUS CORPORATION

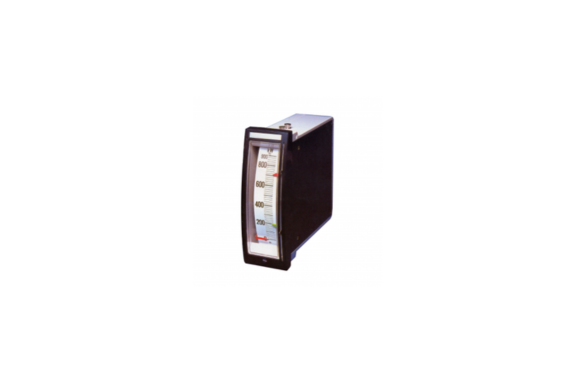

Model: FH-152

Model / Specifications

Scale length: 100mm
Class: 1.5 class
Pointer shape: Large type, red
Escutcheon frame: None
Base material: ABS resin

DC Ammeter

Model: FHC-152, moving-coil type

DC Voltmeter

Model: FHC-152, moving-coil type

When exceeding 300V, use an external multiplier with a 1mA meter.

Receiver Indicator

Model: FHC-152, moving-coil type

Internal resistance of 1MΩ can be specified.
An auxiliary power supply is required when specified.

AC Ammeter

Model: FHK-152, RMS response type

When exceeding 30A, use an external CT with a 5A meter.

AC Voltmeter

Model: FHK-152, rectifier type

How to Order Example

Product name: Receiver indicator
Model: FHC-152
Scale: 0 to 1000kW
Input range: 4 to 20mA
Special specification:

Connection Diagram

Refer to Series Specifications.

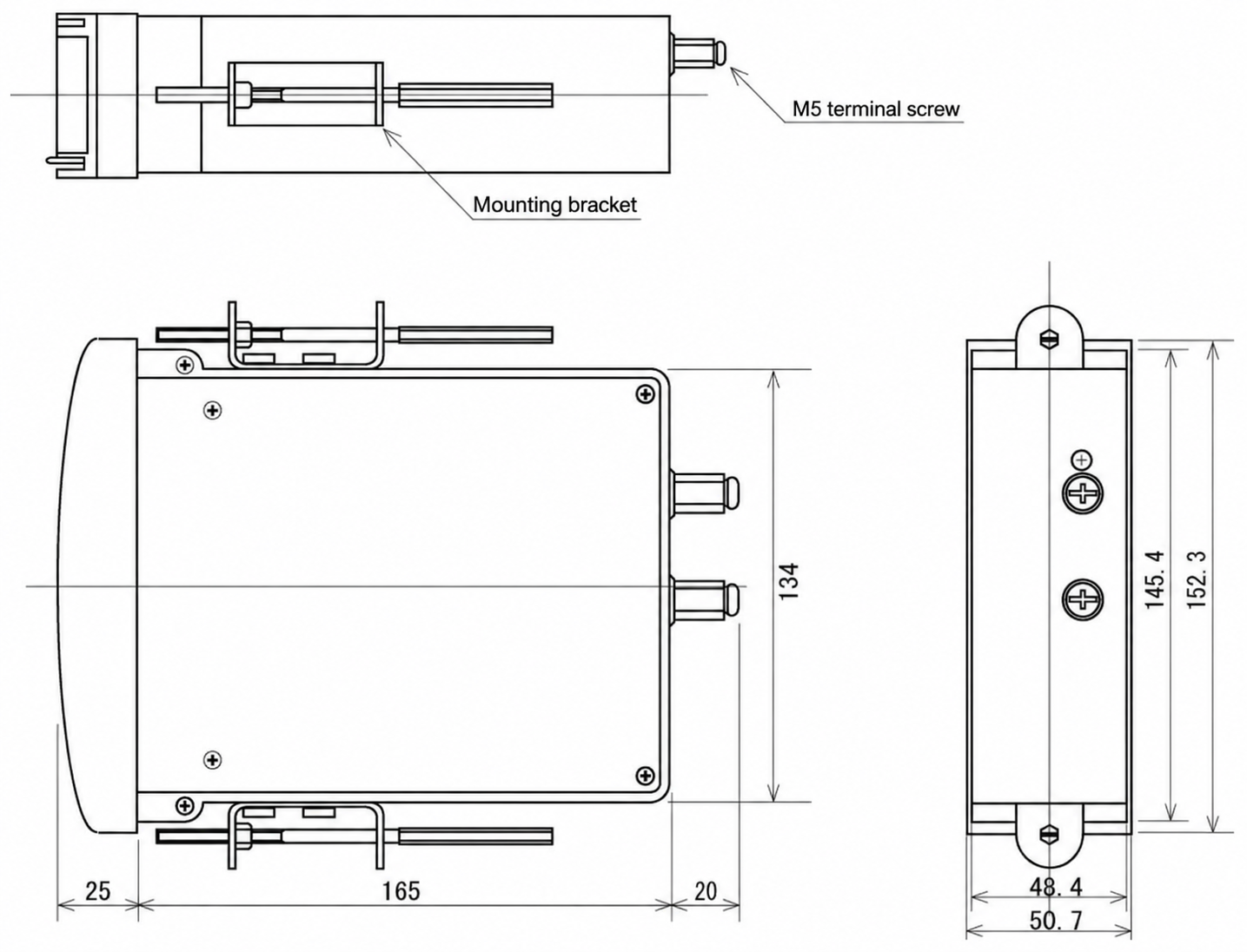

Outline Drawing (Unit: mm)

FH-152
Mass: 1.1 kg (for DC 1 mA meter)

Accessory Outline Drawing
Refer to the Series Specifications

Panel Cutout Dimensions

For mounting n units: 146 × {(50.7 × n) − 1.8}
