Manufacturer: HAKARU PLUS CORPORATION
Model: HDTB-01-0

Product Description

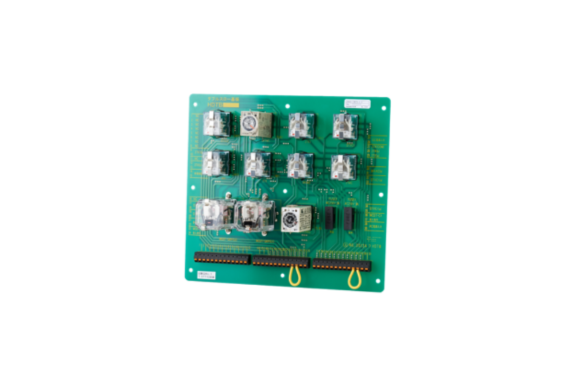

This circuit board integrates the control circuits for a double-throw (MCDT) switch. The switch changes between commercial power and emergency power in power distribution equipment. As a result, users can build the control relay circuit easily by inserting relays and timers into the board.

Features

• The circuit board reduces complex wiring between relays and timers. Therefore, it helps lower wiring work and prevents miswiring.
• The connectors come pre-soldered to the circuit board before shipping.
• Users can assemble the control circuit by placing relays and timers in their designated positions.
• In addition, the external wiring uses the latest screwless terminals for easy connection.
• When users insert the wiring, they hear a “click” sound, and an indicator pops out. As a result, users can check the connection easily.
