Product Description

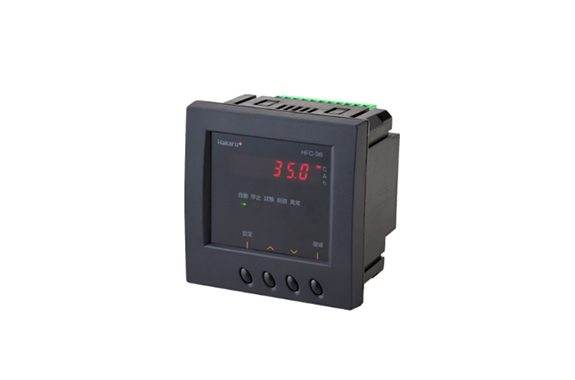

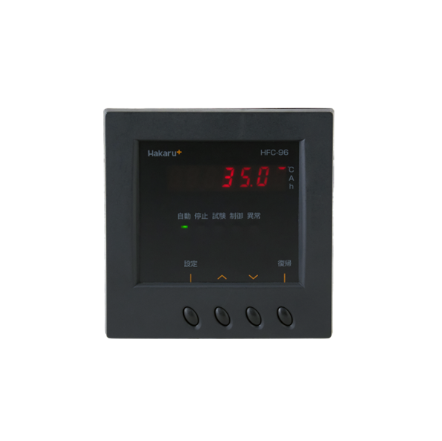

The HFC-96 temperature regulator uses an external temperature sensor and an internal relay to control a ventilation fan and a cooling fan. It keeps the panel temperature within the set range.
If the device detects overcurrent in the connected load, it enters abnormal mode and shuts down.
You can set the control-output hysteresis in 0.1°C steps from 1.0 to 5.0°C. This allows precise control of the fans.

Features

The device uses an external temperature sensor to measure the panel’s internal temperature.
It turns the ventilation fan and cooling fan on or off at the set temperature to maintain the panel temperature.
You can force the control output ON through the forced-operation input terminal.
The abnormal-output terminal detects overcurrent and sends a signal to other devices.
The device tracks the operating time of the fans and gives an indication of when they should be replaced.
