Hakaru XM2-110-6 Electronic Multimeter, Isolated Measurement
Manufacturer: HAKARU PLUS CORPORATION
Model: XM2-110-6
Product Description

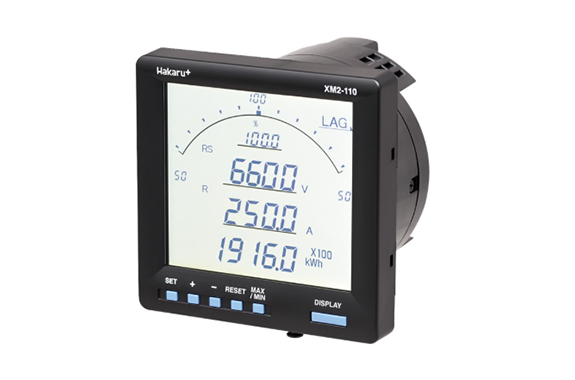

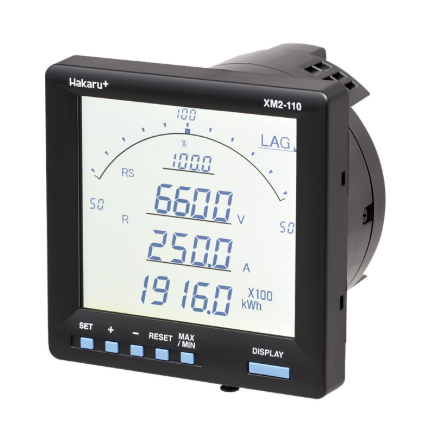

This 110mm round body digital meter integrates an indicator and a converter and can display up to four measurement elements (1 bar graph, 3 digital) at once.
Optional functions include analog output, pulse output, alarm output, RS-485 communication, CC-Link communication, and contact status input.
The LCD panel uses the STN method, which provides higher contrast and a wider viewing angle than conventional products.
It is also a type that can measure leakage current.
Features
Four measurement items can be displayed simultaneously. The display items and positions can be freely set.
[Current, voltage, power, power consumption, demand current, leakage current, resistive leakage current]
Dedicated PC setting software allows you to instantly set various parameters without having to operate the keys on the main unit.
You can set the backlight auto-off time and adjust the brightness.
Depending on the model, the following optional functions can be installed: Simultaneous installation of
- 4 analog outputs, pulse output, and alarm output
- RS-485 + contact status input x 3 points, pulse output, and alarm output
- RS-485 communication (Modbus/RTU) + contact status input x 3 points, pulse output, and alarm output
- CC-Link communication + contact status input x 3 points, pulse output, and alarm output
