Hakaru XM2-110-X108 Electronic Multimeter, 5-Point Contact Input Type

Manufacturer: HAKARU PLUS CORPORATION
Model: XM2-110-X108

Product Description

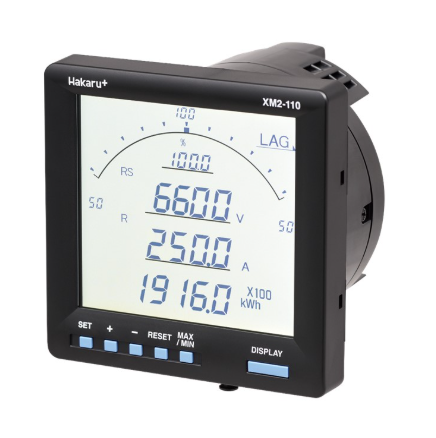

This 110mm round body digital meter integrates an indicator and a converter and can display up to four measurement elements (1 bar graph, 3 digital) at once.
Optional functions include pulse output, alarm output, RS-485 communication, CC-Link communication, and contact status input.
The LCD panel uses the STN method, which provides higher contrast and a wider viewing angle than conventional products.
As a special feature, external operation inputs 1 and 2 can be used as contact status inputs 4 and 5.

Features

Four measurement items can be displayed simultaneously. The display items can be set as desired.
[Current, voltage, power, reactive power, power factor, frequency, demand current, demand power measurement, received power amount, transmitted power amount, received reactive power amount (lag/lead), transmitted reactive power amount (lag/lead)]
External operation inputs 1 and 2 can be used as contact status inputs 4 and 5.
It can measure harmonics (current and voltage) up to the 15th order and convert it into 5th order measurements.
Dedicated PC setting software allows you to instantly set various parameters without having to operate the keys on the main unit.
You can set the backlight auto-off time and adjust the brightness.
The following optional functions can be installed depending on the model.

RS-485 + contact status input x 3 points, pulse output, alarm output simultaneously installed
RS-485 communication (Modbus/RTU) + contact status input x 3 points, pulse output, alarm output simultaneously installed
CC-Link communication + contact status input x 3 points, pulse output, alarm output simultaneously installed
