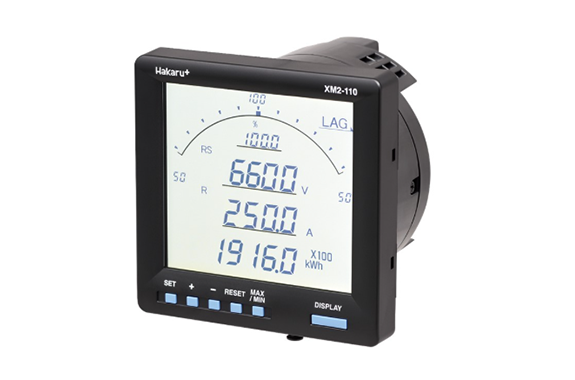

Hakaru XM2-110-X31 Electronic Multimeter, 3-Phase 3-Wire (110, 220V) And 3-Phase 4-Wire (110, 220, 440V) Common

Manufacturer: HAKARU PLUS CORPORATION
Model: XM2-110-X31

Product Description

This 110mm round body digital meter integrates an indicator and a converter and can display up to four measurement elements (1 bar graph, 3 digital) at once.
Optional functions include analog output, pulse output, alarm output, RS-485 communication, and contact status input.
The LCD panel uses the STN method, which provides higher contrast and a wider viewing angle than conventional products.
Special features include the ability to be used with both three-phase three-wire and three-phase four-wire, and the addition of 440/√3V to the three-phase four-wire input rating.

Features

Four measurement items can be displayed simultaneously. The display items can be set as desired.
[Current, voltage, power, reactive power, power factor, frequency, demand current, demand power, received power amount, transmitted power amount, received reactive power amount (lag/lead), transmitted reactive power amount (lag/lead)]
It can be used with both three-phase three-wire and three-phase four-wire.
440/√3V has been added to the input rating of three-phase four-wire.
It measures harmonics (current and voltage) and can measure 5th order conversion.
Dedicated PC setting software allows you to instantly set various parameters without having to operate the keys on the main unit.
Depending on the model, the following optional functions can be installed: Simultaneous installation of

4 analog outputs, pulse output, and alarm output
RS-485 + contact status input x 3 points, pulse output, and alarm output
RS-485 communication (Modbus/RTU) + contact status input x 3 points, pulse output, and alarm output
CC-Link communication + contact status input x 3 points, pulse output, and alarm output
