Hirata Valve Butterfly Valves
Manufacturer: Hirata valve Industry
Product name: Butterfly Valves
About Butterfly valves
It is characterized by opening and closing by rotating the disc in the flow path by 90°, and unlike ball valves, it has the advantage of being able to be installed in a small space.
Hirata valve industry offers metal seats and rubber seats for valve seats. We also offer full rubber-lined valves that have proven records of use in seawater, etc.
Features
It can be installed in a relatively small space and requires less maintenance
We also have a metal sheet type that leaks less even in a high temperature range

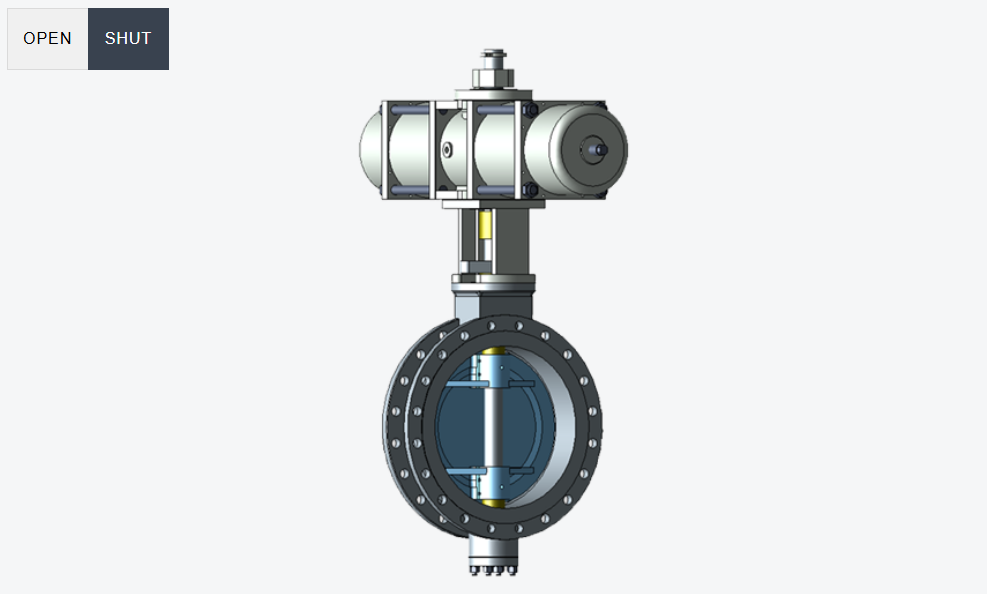

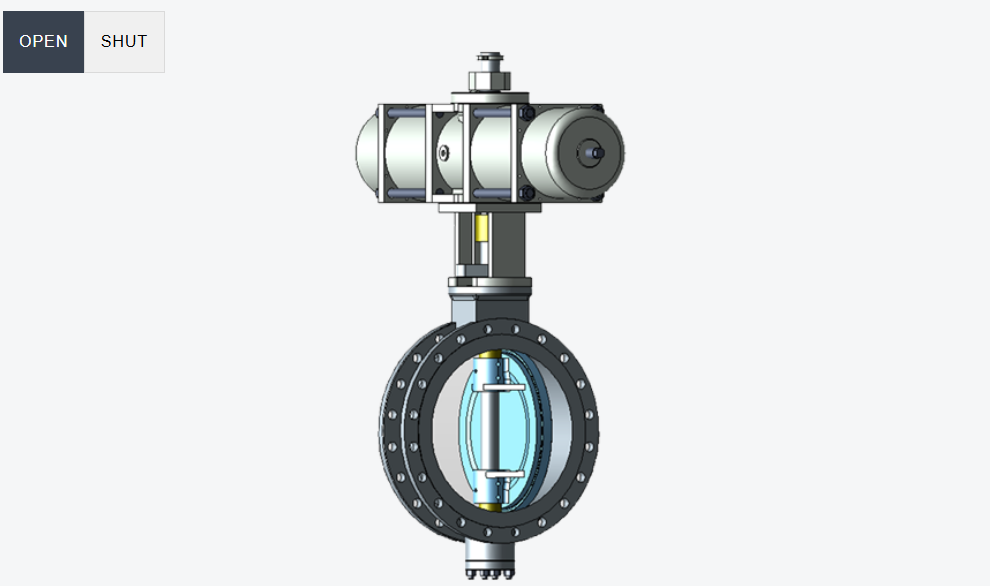

Valve Structure
Production Range
| Nominal pressure | 150LB, 5K, 10K |
|---|---|
| Size | 50A～1500A, 2B～60B [varies depending on pressure] |
| Operation | manual operation, air operation, motor operation etc… |
| Body material | carbon steel, stainless steel, cast iron etc… |
