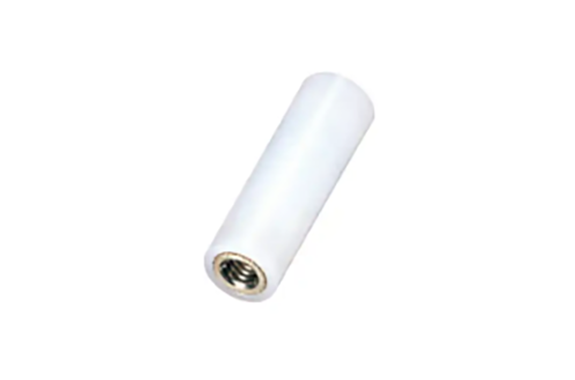

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: AMR-500E

Resin part

Material

Duracon (POM)

color

milky white

Heat distortion temperature

1.82Mpa…110℃

UL standard

UL94-HB (material)

Metal Part

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Nickel plating (Ni)

Exterior drawings

L tolerance:
±0.2 up to L=100
, ±0.3 from L=125

Thread diameter (pitch)	L	Part Number	Pilot hole length
M5 (0.8)	10	AMR-510E	penetration
	15	AMR-515E
	20	AMR-520E
	twenty five	AMR-525E
	30	AMR-530E	10
	35	AMR-535E	10
	40	AMR-540E	10
	45	AMR-545E	10
	50	AMR-550E	10
	55	AMR-555E	10
	60	AMR-560E	10
	70	AMR-570E	10
	80	AMR-580E	10
	90	AMR-590E	10
	100	AMR-5100E	10
	125	AMR-5125E	10
	150	AMR-5150E	10
