Manufacturer: Hirosugi Instruments Co., Ltd.

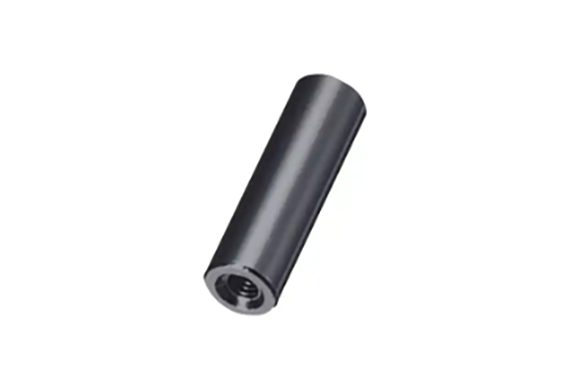

Model: ARL-500BE

Specification

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

process

Black anodized aluminum (BAL)

Exterior drawings

L tolerance:
±0.1 up to L=60,
±0.2 from L=65 to 100
, ±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	ARL-508BE	Fully threaded
	10	ARL-510BE
	12	ARL-512BE
	15	ARL-515BE
	18	ARL-518BE
	20	ARL-520BE
	twenty five	ARL-525BE	10
	30	ARL-530BE	10
	35	ARL-535BE	10
	40	ARL-540BE	10
	45	ARL-545BE	10
	50	ARL-550BE	10
	55	ARL-555BE	10
	60	ARL-560BE	10
	65	ARL-565BE	10
	70	ARL-570BE	10
	75	ARL-575BE	10
	80	ARL-580BE	10
	85	ARL-585BE	10
	90	ARL-590BE	10
	95	ARL-595BE	10
	100	ARL-5100BE	10
	110	ARL-5110BE	10
	120	ARL-5120BE	10
	125	ARL-5125BE	10
	130	ARL-5130BE	10
	140	ARL-5140BE	10
	150	ARL-5150BE	10
	twenty five	ARL-425BE	8
	26	ARL-426BE	8
	27	ARL-427BE	8
	28	ARL-428BE	8
	29	ARL-429BE	8
	30	ARL-430BE	8
	35	ARL-435BE	8
	40	ARL-440BE	8
	45	ARL-445BE	8
	50	ARL-450BE	8
	55	ARL-455BE	8
	60	ARL-460BE	8
