Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ASE-600N

Specification

Material

Lead-free free-cutting brass (bismuth-based C6801BD)
Lead content less than 100 ppm,
Cadmium content less than 10 ppm

process

Nickel plating (Ni)

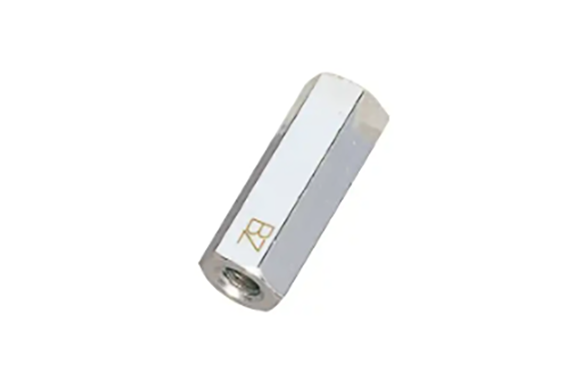

*The body displays the BZ laser mark for identification.

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=65 to L=100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M6 (1.0)	10	ASE-610N	Fully threaded
	15	ASE-615N
	20	ASE-620N
	twenty five	ASE-625N	10
	30	ASE-630N	14
	35	ASE-635N	14
	40	ASE-640N	14
	45	ASE-645N	14
	50	ASE-650N	14
	55	ASE-655N	14
	60	ASE-660N	14
	65	ASE-665N	14
	70	ASE-670N	14
	75	ASE-675N	14
	80	ASE-680N	14
	85	ASE-685N	14
	90	ASE-690N	14
	95	ASE-695N	14
	100	ASE-6100N	14
	110	ASE-6110N	14
	120	ASE-6120N	14
	125	ASE-6125N	14
	130	ASE-6130N	14
	140	ASE-6140N	14
	150	ASE-6150N	14
