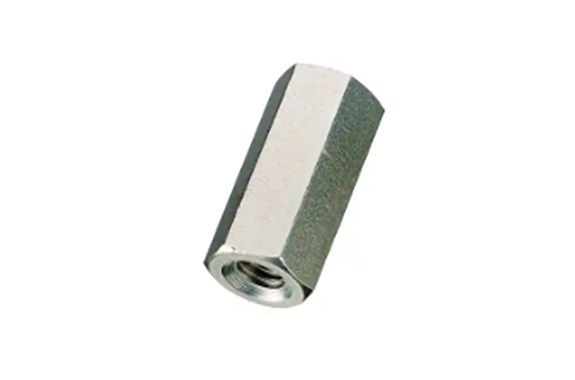

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ASF-300N

Specification

Material

Free-cutting steel (SUM)

process

Electroless Nickel Plating

Exterior drawings

L tolerance
: ±0.1 up to L=60
, ±0.2 from L=65

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	3	ASF-303N	Fully threaded
	4	ASF-304N
	5	ASF-305N
	6	ASF-306N
	7	ASF-307N
	8	ASF-308N
	9	ASF-309N
	10	ASF-310N
	11	ASF-311N
	12	ASF-312N
	13	ASF-313N
	14	ASF-314N
	15	ASF-315N
	16	ASF-316N	6
	17	ASF-317N	6
	18	ASF-318N	6
	19	ASF-319N	6
	20	ASF-320N	6
	twenty one	ASF-321N	6
	twenty two	ASF-322N	6
	twenty three	ASF-323N	6
	twenty four	ASF-324N	6
	twenty five	ASF-325N	6
	26	ASF-326N	6
	27	ASF-327N	6
	28	ASF-328N	6
	29	ASF-329N	6
	30	ASF-330N	6
	35	ASF-335N	6
	40	ASF-340N	6
	45	ASF-345N	6
	50	ASF-350N	6
	55	ASF-355N	6
	60	ASF-360N	6
	65	ASF-365N	6
	70	ASF-370N	6
	75	ASF-375N	6
	80	ASF-380N	6
	85	ASF-385N	6
	90	ASF-390N	6
	95	ASF-395N	6
	100	ASF-3100N	6
