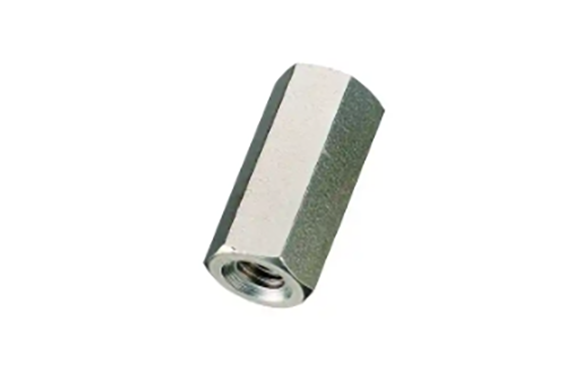

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ASF-400N

Specification

Material

Free-cutting steel (SUM)

process

Electroless Nickel Plating

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=62 to L=100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7)	5	ASF-405N	Fully threaded
	6	ASF-406N
	7	ASF-407N
	8	ASF-408N
	9	ASF-409N
	10	ASF-410N
	11	ASF-411N
	12	ASF-412N
	13	ASF-413N
	14	ASF-414N
	15	ASF-415N
	16	ASF-416N	7.5
	17	ASF-417N	7.5
	18	ASF-418N	7.5
	19	ASF-419N	7.5
	20	ASF-420N	7.5
	twenty one	ASF-421N	7.5
	twenty two	ASF-422N	7.5
	twenty three	ASF-423N	7.5
	twenty four	ASF-424N	7.5
	twenty five	ASF-425N	7.5
	26	ASF-426N	7.5
	27	ASF-427N	7.5
	28	ASF-428N	7.5
	29	ASF-429N	7.5
	30	ASF-430N	7.5
	35	ASF-435N	7.5
	40	ASF-440N	7.5
	45	ASF-445N	7.5
	50	ASF-450N	7.5
	55	ASF-455N	7.5
	60	ASF-460N	7.5
	65	ASF-465N	7.5
	70	ASF-470N	7.5
	75	ASF-475N	7.5
	80	ASF-480N	7.5
	85	ASF-485N	7.5
	90	ASF-490N	7.5
	95	ASF-495N	7.5
	100	ASF-4100N	7.5
	110	ASF-4110N	7.5
	120	ASF-4120N	7.5
	130	ASF-4130N	7.5
	140	ASF-4140N	7.5
	150	ASF-4150N	7.5
