Manufacturer: Hirosugi Instruments Co., Ltd.

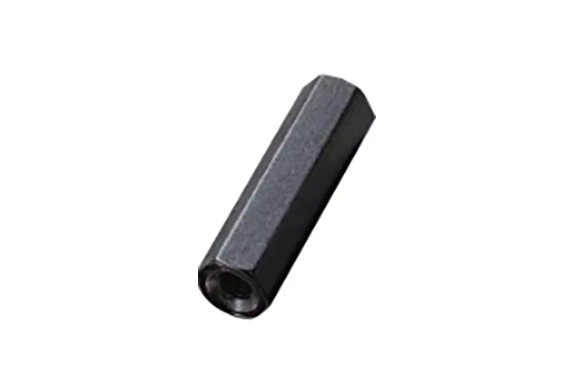

Model: ASL-300BE

Specification

Material

Lead-free free-cutting aluminum (CB156)
Lead content 10 ppm or less

process

Black anodized aluminum (BAL)

Exterior drawings

Lead-free recognition groove on end surface
L tolerance:
±0.1 up to L=60,
±0.2 from L=65

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	4	ASL-304BE	Fully threaded
	4.5	ASL-304.5BE
	5	ASL-305BE
	5.5	ASL-305.5BE
	6	ASL-306BE
	6.5	ASL-306.5BE
	7	ASL-307BE
	7.5	ASL-307.5BE
	8	ASL-308BE
	8.5	ASL-308.5BE
	9	ASL-309BE
	9.5	ASL-309.5BE
	10	ASL-310BE
	11	ASL-311BE
	12	ASL-312BE
	12.5	ASL-312.5BE
	13	ASL-313BE
	14	ASL-314BE
	15	ASL-315BE
	16	ASL-316BE	6
	16.5	ASL-316.5BE	6
	17	ASL-317BE	6
	17.5	ASL-317.5BE	6
	18	ASL-318BE	6
	19	ASL-319BE	6
	20	ASL-320BE	6
	twenty one	ASL-321BE	6
	twenty two	ASL-322BE	6
	twenty three	ASL-323BE	6
	twenty four	ASL-324BE	6
	twenty five	ASL-325BE	6
	26	ASL-326BE	6
	27	ASL-327BE	6
	28	ASL-328BE	6
	29	ASL-329BE	6
	30	ASL-330BE	6
	35	ASL-335BE	6
	40	ASL-340BE	6
	45	ASL-345BE	6
	50	ASL-350BE	6
	55	ASL-355BE	6
	60	ASL-360BE	6
	65	ASL-365BE	6
	70	ASL-370BE	6
	75	ASL-375BE	6
	80	ASL-380BE	6
	85	ASL-385BE	6
	90	ASL-390BE	6
	95	ASL-395BE	6
	100	ASL-3100BE	6
