Manufacturer: Hirosugi Instruments Co., Ltd.

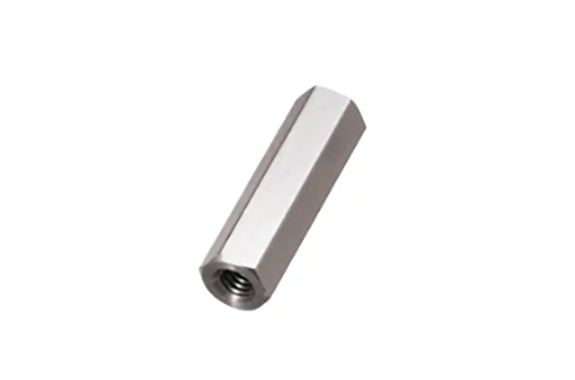

Model: ASU-300-6

Specification

Material

Free-cutting stainless steel (SUS303)

process

Degreasing

Exterior drawings

L tolerance
: ±0.1 up to L=60
, ±0.2 from L=65

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	3	ASU-303-6	Fully threaded
	3.5	ASU-303.5-6
	4	ASU-304-6
	4.5	ASU-304.5-6
	5	ASU-305-6
	5.5	ASU-305.5-6
	6	ASU-306-6
	6.5	ASU-306.5-6
	7	ASU-307-6
	7.5	ASU-307.5-6
	8	ASU-308-6
	8.5	ASU-308.5-6
	9	ASU-309-6
	9.5	ASU-309.5-6
	10	ASU-310-6
	10.5	ASU-310.5-6
	11	ASU-311-6
	11.5	ASU-311.5-6
	12	ASU-312-6
	12.5	ASU-312.5-6	6
	13	ASU-313-6	6
	13.5	ASU-313.5-6	6
	14	ASU-314-6	6
	14.5	ASU-314.5-6	6
	15	ASU-315-6	6
	15.5	ASU-315.5-6	6
	16	ASU-316-6	6
	16.5	ASU-316.5-6	6
	17	ASU-317-6	6
	17.5	ASU-317.5-6	6
	18	ASU-318-6	6
	18.5	ASU-318.5-6	6
	19	ASU-319-6	6
	19.5	ASU-319.5-6	6
	20	ASU-320-6	6
	twenty one	ASU-321-6	6
	twenty two	ASU-322-6	6
	twenty three	ASU-323-6	6
	twenty four	ASU-324-6	6
	twenty five	ASU-325-6	6
	26	ASU-326-6	6
	27	ASU-327-6	6
	28	ASU-328-6	6
	29	ASU-329-6	6
	30	ASU-330-6	6
	35	ASU-335-6	6
	40	ASU-340-6	6
	45	ASU-345-6	6
	50	ASU-350-6	6
	55	ASU-355-6	6
	60	ASU-360-6	6
	65	ASU-365-6	6
	70	ASU-370-6	6
	75	ASU-375-6	6
	80	ASU-380-6	6
	85	ASU-385-6	6
	90	ASU-390-6	6
	95	ASU-395-6	6
	100	ASU-3100-6	6
