Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ASU-400H

Specification

Material

Stainless steel (SUS304)

process

Degreasing

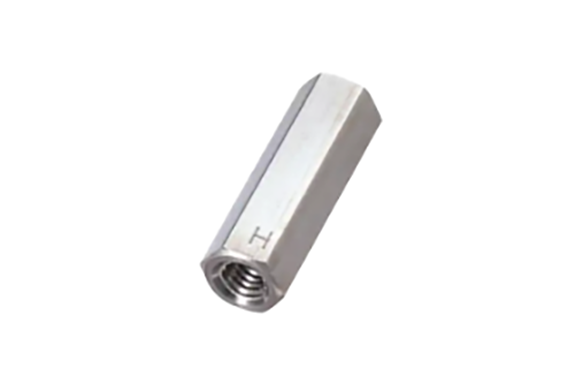

*The stainless steel 304 spacer is made of high-grade stainless steel. The H symbol is engraved on the spacer body.

Exterior drawings

L tolerance
: ±0.1 up to L=60
, ±0.2 from L=65

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7)	5	ASU-405H	Fully threaded
	6	ASU-406H
	7	ASU-407H
	8	ASU-408H
	9	ASU-409H
	10	ASU-410H
	11	ASU-411H
	12	ASU-412H
	13	ASU-413H
	14	ASU-414H
	15	ASU-415H
	16	ASU-416H
	17	ASU-417H	8
	18	ASU-418H	8
	19	ASU-419H	8
	20	ASU-420H	8
	twenty one	ASU-421H	8
	twenty two	ASU-422H	8
	twenty three	ASU-423H	8
	twenty four	ASU-424H	8
	twenty five	ASU-425H	8
	26	ASU-426H	8
	27	ASU-427H	8
	28	ASU-428H	8
	29	ASU-429H	8
	30	ASU-430H	8
	35	ASU-435H	8
	40	ASU-440H	8
	45	ASU-445H	8
	50	ASU-450H	8
	55	ASU-455H	8
	60	ASU-460H	8
	65	ASU-465H	8
	70	ASU-470H	8
	75	ASU-475H	8
	80	ASU-480H	8
	85	ASU-485H	8
	90	ASU-490H	8
	95	ASU-495H	8
	100	ASU-4100H	8
