Manufacturer: Hirosugi Instruments Co., Ltd.

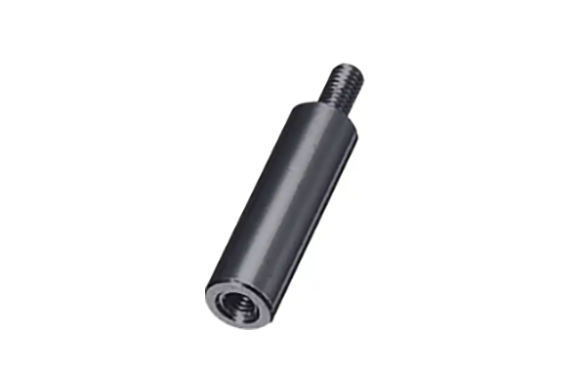

Model: BRL-500BE

Specification

Material

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

process

Black anodized aluminum (BAL)

Exterior drawings

L tolerance:
±0.1 up to L=60,
±0.2 from L=65 to 100
, ±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	BRL-508BE	5
	10	BRL-510BE	7
	12	BRL-512BE	9
	15	BRL-515BE	10
	18	BRL-518BE	10
	20	BRL-520BE	10
	25	BRL-525BE	10
	30	BRL-530BE	10
	35	BRL-535BE	10
	40	BRL-540BE	10
	45	BRL-545BE	10
	50	BRL-550BE	10
	55	BRL-555BE	10
	60	BRL-560BE	10
	65	BRL-565BE	10
	70	BRL-570BE	10
	75	BRL-575BE	10
	80	BRL-580BE	10
	85	BRL-585BE	10
	90	BRL-590BE	10
	95	BRL-595BE	10
	100	BRL-5100BE	10
	110	BRL-5110BE	10
	120	BRL-5120BE	10
	125	BRL-5125BE	10
	130	BRL-5130BE	10
	140	BRL-5140BE	10
	150	BRL-5150BE	10
	27	BRL-427BE	8
	28	BRL-428BE	8
	29	BRL-429BE	8
	30	BRL-430BE	8
	35	BRL-435BE	8
	40	BRL-440BE	8
	45	BRL-445BE	8
	50	BRL-450BE	8
	55	BRL-455BE	8
	60	BRL-460BE	8
