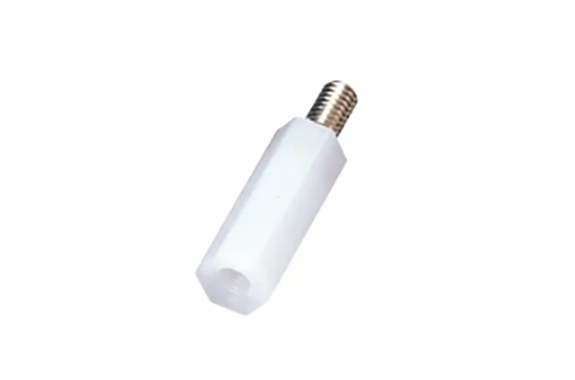

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BS-2500E

Spacer

Material

Duracon (POM)

color

milky white

Heat distortion temperature

1.82Mpa…110℃

UL standard

UL94-HB (material)

Male screw

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Nickel plating (Ni)

Exterior drawings

Tolerance of L
: ±0.1 up to L=15.5,
±0.2 from L=16

Thread diameter (pitch)	L	Part Number
M2.5 (0.45)	8	BS-2508E
	8.5	BS-2508.5E
	9	BS-2509E
	9.5	BS-2509.5E
	10	BS-2510E
	10.5	BS-2510.5E
	11	BS-2511E
	11.5	BS-2511.5E
	12	BS-2512E
	12.5	BS-2512.5E
	13	BS-2513E
	13.5	BS-2513.5E
	14	BS-2514E
	14.5	BS-2514.5E
	15	BS-2515E
	15.5	BS-2515.5E
	16	BS-2516E
	16.5	BS-2516.5E
	17	BS-2517E
	17.5	BS-2517.5E
	18	BS-2518E
	18.5	BS-2518.5E
	19	BS-2519E
	19.5	BS-2519.5E
	20	BS-2520E
	18.5	BS-2018.5E
	19	BS-2019E
	19.5	BS-2019.5E
	20	BS-2020E
	twenty one	BS-2021E
	twenty two	BS-2022E
	twenty three	BS-2023E
	twenty four	BS-2024E
	twenty five	BS-2025E
	26	BS-2026E
	27	BS-2027E
	28	BS-2028E
	29	BS-2029E
	30	BS-2030E
