Manufacturer: Hirosugi Instruments Co., Ltd.

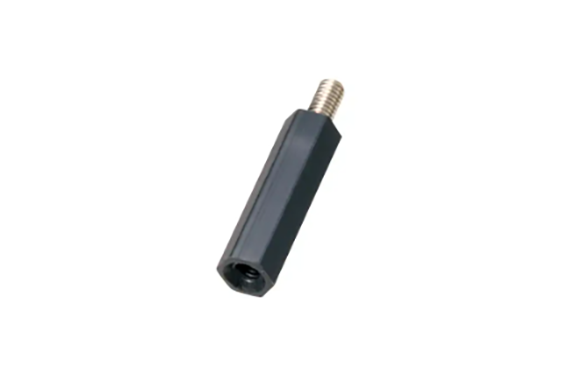

Model: BS-2600BE

Main unit

Material

Duracon (POM)

color

black

Heat distortion temperature

1.82Mpa…110℃

UL standard

UL94-HB (material)

Male screw

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Nickel plating (Ni)

Exterior drawings

L tolerance:
±0.1 up to L=15,
±0.2 from L=16,
ℓ dimension:
3.2 for L=6 to 7.5, 3.7 for
L=8 or more

Thread diameter (pitch)	L	Part Number
M2.6 (0.45)	6	BS-2606BE
	6.5	BS-2606.5BE
	7	BS-2607BE
	7.5	BS-2607.5BE
	8	BS-2608BE
	8.5	BS-2608.5BE
	9	BS-2609BE
	9.5	BS-2609.5BE
	10	BS-2610BE
	11	BS-2611BE
	12	BS-2612BE
	12.5	BS-2612.5BE
	13	BS-2613BE
	14	BS-2614BE
	15	BS-2615BE
	16	BS-2616BE
	16.5	BS-2616.5BE
	17	BS-2617BE
	17.5	BS-2617.5BE
	18	BS-2618BE
	19	BS-2619BE
	20	BS-2620BE
	twenty one	BS-2621BE
	twenty two	BS-2622BE
	twenty three	BS-2623BE
	twenty four	BS-2624BE
	twenty five	BS-2625BE
	26	BS-2626BE
	27	BS-2627BE
	28	BS-2628BE
	29	BS-2629BE
	30	BS-2630BE
