Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BS-300WE

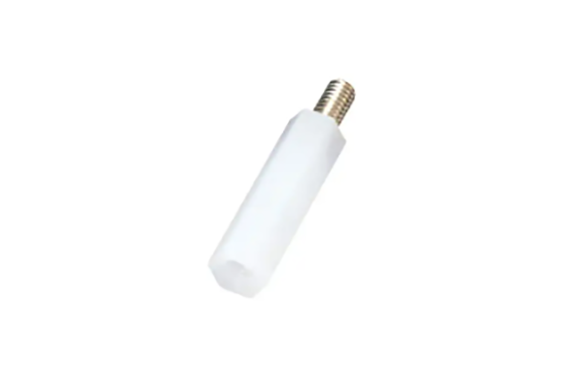

Spacer

Material

Duracon (POM)

color

milky white

Heat distortion temperature

1.82Mpa…110℃

UL standard

UL94-HB (material)

Male screw

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Nickel plating (Ni)

Exterior drawings

L tolerance:
±0.1 up to L=15.5,
±0.2 from L=16
*(3) is BS-306WE, BS-306.5WE

Thread diameter (pitch)	L	Part Number
M3 (0.5)	6	BS-306WE
	6.5	BS-306.5WE
	7	BS-307WE
	7.5	BS-307.5WE
	8	BS-308WE
	8.5	BS-308.5WE
	9	BS-309WE
	9.5	BS-309.5WE
	10	BS-310WE
	10.5	BS-310.5WE
	11	BS-311WE
	11.5	BS-311.5WE
	12	BS-312WE
	12.5	BS-312.5WE
	13	BS-313WE
	13.5	BS-313.5WE
	14	BS-314WE
	14.5	BS-314.5WE
	15	BS-315WE
	15.5	BS-315.5WE
	16	BS-316WE
	16.5	BS-316.5WE
	17	BS-317WE
	17.5	BS-317.5WE
	18	BS-318WE
	18.5	BS-318.5WE
	19	BS-319WE
	19.5	BS-319.5WE
	20	BS-320WE
	twenty one	BS-321WE
	twenty two	BS-322WE
	twenty three	BS-323WE
	twenty four	BS-324WE
	twenty five	BS-325WE
	26	BS-326WE
	27	BS-327WE
	28	BS-328WE
	29	BS-329WE
	30	BS-330WE
	31	BS-331WE
	32	BS-332WE
	33	BS-333WE
	34	BS-334WE
	35	BS-335WE
	36	BS-336WE
	37	BS-337WE
	38	BS-338WE
	39	BS-339WE
	40	BS-340WE
	45	BS-345WE
	50	BS-350WE
	55	BS-355WE
	60	BS-360WE
