Manufacturer: Hirosugi Instruments Co., Ltd.

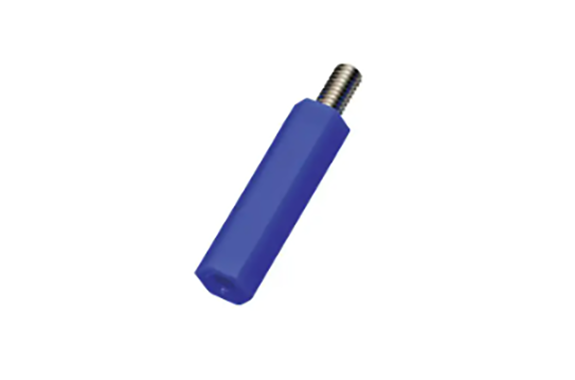

Model: BS-400BUE

Main unit

Material

Duracon (POM EX-09)

color

blue

Male screw

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Nickel plating (Ni)

Exterior drawings

L tolerance:
±0.1 up to L=15
, ±0.2 from L=16 to 100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7)	8	BS-408BUE	3.8
	9	BS-409BUE	4.8
	10	BS-410BUE	5.5
	11	BS-411BUE	6.5
	12	BS-412BUE	7.5
	13	BS-413BUE	8.5
	14	BS-414BUE	9.5
	15	BS-415BUE	10.5
	16	BS-416BUE	11.5
	17	BS-417BUE	12.5
	18	BS-418BUE	13.5
	19	BS-419BUE	14.5
	20	BS-420BUE	15.5
	twenty one	BS-421BUE	16.5
	twenty two	BS-422BUE	17.5
	twenty three	BS-423BUE	18.5
	twenty four	BS-424BUE	19.5
	twenty five	BS-425BUE	20.5
	26	BS-426BUE	21.5
	27	BS-427BUE	22.5
	28	BS-428BUE	23.5
	29	BS-429BUE	24.5
	30	BS-430BUE	25.5
	31	BS-431BUE	26.5
	32	BS-432BUE	27.5
	33	BS-433BUE	28.5
	34	BS-434BUE	29.5
	35	BS-435BUE	30.5
	36	BS-436BUE	31.5
	37	BS-437BUE	32.5
	38	BS-438BUE	33.5
	39	BS-439BUE	34.5
	40	BS-440BUE	35.5
	41	BS-441BUE	36.5
	42	BS-442BUE	37.5
	43	BS-443BUE	38.5
	44	BS-444BUE	39.5
	45	BS-445BUE	40.5
	46	BS-446BUE	41.5
	47	BS-447BUE	42.5
	48	BS-448BUE	43.5
	49	BS-449BUE	44.5
	50	BS-450BUE	45.5
	51	BS-451BUE	46.5
	52	BS-452BUE	47.5
	53	BS-453BUE	48.5
	54	BS-454BUE	49.5
	55	BS-455BUE	50.5
	56	BS-456BUE	51.5
	57	BS-457BUE	52.5
	58	BS-458BUE	53.5
	59	BS-459BUE	54.5
	60	BS-460BUE	55.5
	62	BS-462BUE	57.5
	64	BS-464BUE	59.5
	65	BS-465BUE	60.5
	66	BS-466BUE	8
	68	BS-468BUE	8
	70	BS-470BUE	8
	72	BS-472BUE	8
	74	BS-474BUE	8
	75	BS-475BUE	8
	76	BS-476BUE	8
	78	BS-478BUE	8
80	BS-480BUE	8
85	BS-485BUE	8
90	BS-490BUE	8
95	BS-495BUE	8
100	BS-4100BUE	8
110	BS-4110BUE	8
120	BS-4120BUE	8
130	BS-4130BUE	8
140	BS-4140BUE	8
150	BS-4150BUE	8
