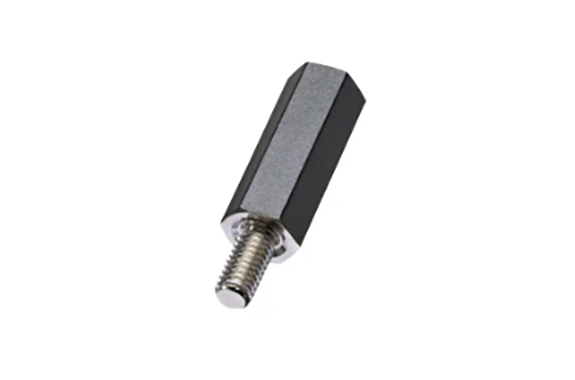

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BSB-300DMBE

Specification

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

Process

Black baking treatment (nickel base)

The black baking treatment is only applied to the side surface.
The screw part and both end surfaces are nickel plated.

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	4	BSB-304DMBE	2.5
	4.5	BSB-304.5DMBE	2.5
	5	BSB-305DMBE	3.5
	5.5	BSB-305.5DMBE	3.5
	6	BSB-306DMBE	4
	6.5	BSB-306.5DMBE	4
	7	BSB-307DMBE	5
	7.5	BSB-307.5DMBE	5.5
	8	BSB-308DMBE	6
	8.5	BSB-308.5DMBE	6
	9	BSB-309DMBE	6
	9.5	BSB-309.5DMBE	6
	10	BSB-310DMBE	6
	10.5	BSB-310.5DMBE	6
	11	BSB-311DMBE	6
	11.5	BSB-311.5DMBE	6
	12	BSB-312DMBE	6
	12.5	BSB-312.5DMBE	6
	13	BSB-313DMBE	6
	13.5	BSB-313.5DMBE	6
	14	BSB-314DMBE	6
	14.5	BSB-314.5DMBE	6
	15	BSB-315DMBE	6
	15.5	BSB-315.5DMBE	6
	16	BSB-316DMBE	6
	16.5	BSB-316.5DMBE	6
	17	BSB-317DMBE	6
	17.5	BSB-317.5DMBE	6
	18	BSB-318DMBE	6
	18.5	BSB-318.5DMBE	6
	19	BSB-319DMBE	6
	19.5	BSB-319.5DMBE	6
	20	BSB-320DMBE	6
