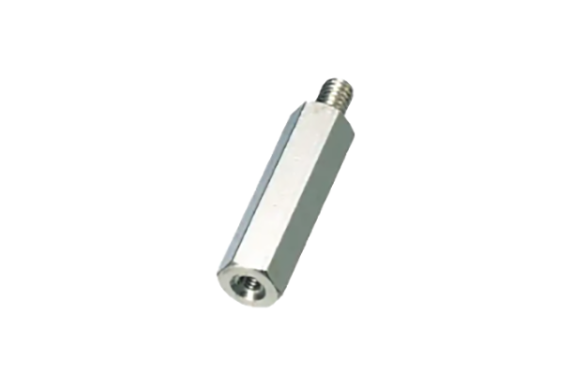

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BSB-500E

Specification

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

Process

Nickel plating (Ni)

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=65 to 100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	BSB-508E	5
	9	BSB-509E	6
	10	BSB-510E	7
	11	BSB-511E	8
	12	BSB-512E	9
	13	BSB-513E	10
	14	BSB-514E	10
	15	BSB-515E	10
	16	BSB-516E	10
	18	BSB-518E	10
	19	BSB-519E	10
	20	BSB-520E	10
	twenty three	BSB-523E	10
	twenty five	BSB-525E	10
	27	BSB-527E	10
	30	BSB-530E	10
	33	BSB-533E	10
	35	BSB-535E	10
	37	BSB-537E	10
	40	BSB-540E	10
	43	BSB-543E	10
	45	BSB-545E	10
	48	BSB-548E	10
	50	BSB-550E	10
	52	BSB-552E	10
	55	BSB-555E	10
	57	BSB-557E	10
	60	BSB-560E	10
	62	BSB-562E	10
	65	BSB-565E	10
	68	BSB-568E	10
	70	BSB-570E	10
	72	BSB-572E	10
	75	BSB-575E	10
	78	BSB-578E	10
	80	BSB-580E	10
	83	BSB-583E	10
	85	BSB-585E	10
	88	BSB-588E	10
	90	BSB-590E	10
	92	BSB-592E	10
	95	BSB-595E	10
	97	BSB-597E	10
	100	BSB-5100E	10
	105	BSB-5105E	10
	110	BSB-5110E	10
	115	BSB-5115E	10
	120	BSB-5120E	10
	125	BSB-5125E	10
	130	BSB-5130E	10
	135	BSB-5135E	10
	140	BSB-5140E	10
	145	BSB-5145E	10
	150	BSB-5150E	10
