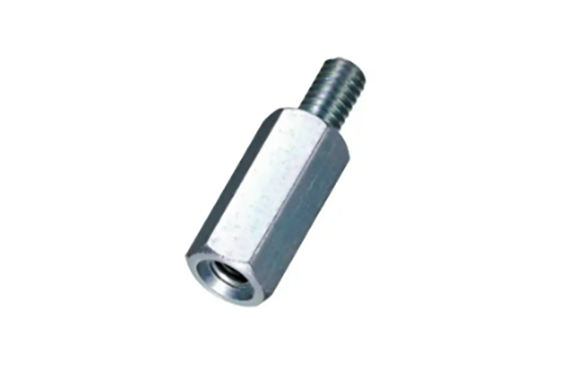

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BSF-800E

Specification

Material

Free-cutting steel (SUM)

process

Trivalent chromium chromate treatment

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=65 to 100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M8 (1.25)	30	BSF-830E	17
	35	BSF-835E	17
	40	BSF-840E	17
	45	BSF-845E	17
	50	BSF-850E	17
	55	BSF-855E	17
	60	BSF-860E	17
	65	BSF-865E	17
	70	BSF-870E	17
	75	BSF-875E	17
	80	BSF-880E	17
	85	BSF-885E	17
	90	BSF-890E	17
	95	BSF-895E	17
	100	BSF-8100E	17
	110	BSF-8110E	17
	120	BSF-8120E	17
	125	BSF-8125E	17
	130	BSF-8130E	17
	140	BSF-8140E	17
	150	BSF-8150E	17
