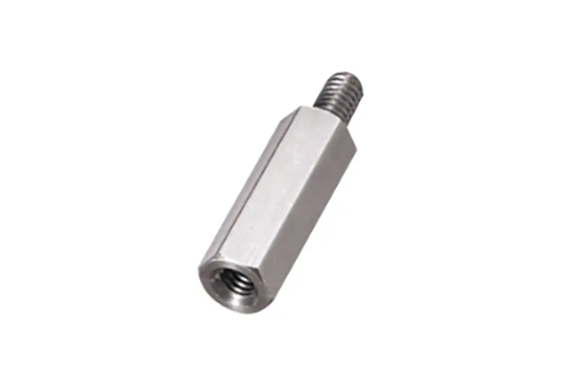

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BSL-500KE

Specification

Material

Lead-free free-cutting aluminum (CB156)
Lead content 10 ppm or less

process

Electroless Nickel Plating

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=65 to 100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	BSL-508KE	5
	10	BSL-510KE	7
	12	BSL-512KE	9
	15	BSL-515KE	10
	18	BSL-518KE	10
	20	BSL-520KE	10
	twenty five	BSL-525KE	10
	30	BSL-530KE	10
	35	BSL-535KE	10
	40	BSL-540KE	10
	45	BSL-545KE	10
	50	BSL-550KE	10
	55	BSL-555KE	10
	60	BSL-560KE	10
	65	BSL-565KE	10
	70	BSL-570KE	10
	75	BSL-575KE	10
	80	BSL-580KE	10
	85	BSL-585KE	10
	90	BSL-590KE	10
	95	BSL-595KE	10
	100	BSL-5100KE	10
	110	BSL-5110KE	10
	120	BSL-5120KE	10
	125	BSL-5125KE	10
	130	BSL-5130KE	10
	140	BSL-5140KE	10
	150	BSL-5150KE	10
	50	BSL-450KE	8
	55	BSL-455KE	8
	60	BSL-460KE	8
	65	BSL-465KE	8
	70	BSL-470KE	8
	75	BSL-475KE	8
	80	BSL-480KE	8
	85	BSL-485KE	8
	90	BSL-490KE	8
	95	BSL-495KE	8
	100	BSL-4100KE	8
	110	BSL-4110KE	8
	120	BSL-4120KE	8
	130	BSL-4130KE	8
	140	BSL-4140KE	8
	150	BSL-4150KE	8
