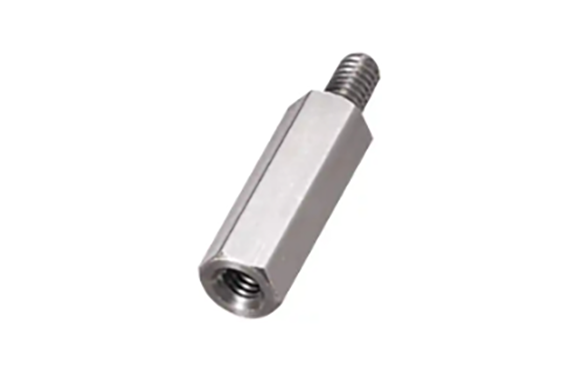

Hirosugi BSU-400 Stainless Steel Spacer (hexagonal)

Hirosugi

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BSU-400

Specification

Material: Free-cutting stainless steel (SUS303)
process: Degreasing

Exterior drawings

Double threaded stainless steel spacer drawing

L tolerance:
±0.1 up to L=60
, ±0.2 from L=61 to 100,
±0.3 from L=105

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7)	6	BSU-406	3.5
	6.5	BSU-406.5	3.5
	7	BSU-407	4.5
	7.5	BSU-407.5	4.5
	8	BSU-408	5.5
	8.5	BSU-408.5	5.5
	9	BSU-409	6
	9.5	BSU-409.5	6
	10	BSU-410	7
	10.5	BSU-410.5	7
	11	BSU-411	8
	11.5	BSU-411.5	8
	12	BSU-412	8
	12.5	BSU-412.5	8
	13	BSU-413	8
	13.5	BSU-413.5	8
	14	BSU-414	8
	14.5	BSU-414.5	8
	15	BSU-415	8
	15.5	BSU-415.5	8
	16	BSU-416	8
	16.5	BSU-416.5	8
	17	BSU-417	8
	17.5	BSU-417.5	8
	18	BSU-418	8
	18.5	BSU-418.5	8
	19	BSU-419	8
	19.5	BSU-419.5	8
	20	BSU-420	8
	20.5	BSU-420.5	8
	twenty one	BSU-421	8
	21.5	BSU-421.5	8
	twenty two	BSU-422	8
	22.5	BSU-422.5	8
	twenty three	BSU-423	8
	23.5	BSU-423.5	8
	twenty four	BSU-424	8
	24.5	BSU-424.5	8
	twenty five	BSU-425	8
	25.5	BSU-425.5	8
	26	BSU-426	8
	26.5	BSU-426.5	8
	27	BSU-427	8
	27.5	BSU-427.5	8
	28	BSU-428	8
	28.5	BSU-428.5	8
	29	BSU-429	8
	29.5	BSU-429.5	8
	30	BSU-430	8
	31	BSU-431	8
	32	BSU-432	8
	33	BSU-433	8
	34	BSU-434	8
	35	BSU-435	8
	36	BSU-436	8
	37	BSU-437	8
	38	BSU-438	8
	39	BSU-439	8
	40	BSU-440	8
	41	BSU-441	8
	42	BSU-442	8
	43	BSU-443	8
	44	BSU-444	8
	45	BSU-445	8
46	BSU-446	8
47	BSU-447	8
48	BSU-448	8
49	BSU-449	8
50	BSU-450	8
51	BSU-451	8
52	BSU-452	8
53	BSU-453	8
54	BSU-454	8
55	BSU-455	8
56	BSU-456	8
57	BSU-457	8
58	BSU-458	8
59	BSU-459	8
60	BSU-460	8
61	BSU-461	8
62	BSU-462	8
63	BSU-463	8
64	BSU-464	8
65	BSU-465	8
66	BSU-466	8
67	BSU-467	8
68	BSU-468	8
69	BSU-469	8
70	BSU-470	8
71	BSU-471	8
72	BSU-472	8
73	BSU-473	8
74	BSU-474	8
75	BSU-475	8
76	BSU-476	8
77	BSU-477	8
78	BSU-478	8
79	BSU-479	8
80	BSU-480	8
81	BSU-481	8
82	BSU-482	8
83	BSU-483	8
84	BSU-484	8
85	BSU-485	8
86	BSU-486	8
87	BSU-487	8
88	BSU-488	8
89	BSU-489	8
90	BSU-490	8
91	BSU-491	8
92	BSU-492	8
93	BSU-493	8
94	BSU-494	8
95	BSU-495	8
96	BSU-496	8
97	BSU-497	8
98	BSU-498	8
99	BSU-499	8
100	BSU-4100	8
105	BSU-4105	8
110	BSU-4110	8
115	BSU-4115	8
120	BSU-4120	8
125	BSU-4125	8
130	BSU-4130	8
135	BSU-4135	8
140	BSU-4140	8
145	BSU-4145	8
150	BSU-4150	8
