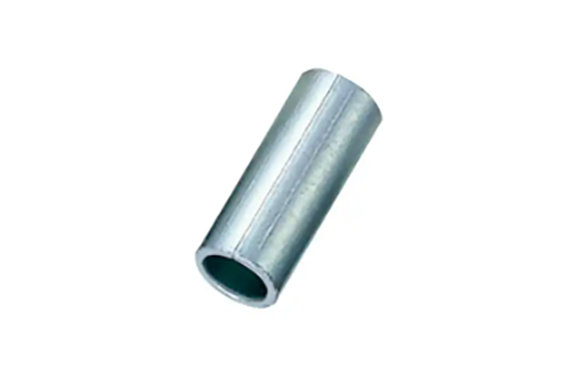

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CF-300ZE

Specification

Material

Steel plate (SPCC)

process

Trivalent chromium chromate treatment

Exterior drawings

L tolerance:
±0.05 up to L=10
, ±0.1 from L=10.5 to 20,
±0.2 from L=22

Screw diameter	L	Part Number
For M3	1.6	CF-301.6ZE
	2	CF-302ZE
	2.5	CF-302.5ZE
	3	CF-303ZE
	3.5	CF-303.5ZE
	4	CF-304ZE
	4.5	CF-304.5ZE
	5	CF-305ZE
	5.5	CF-305.5ZE
	6	CF-306ZE
	6.5	CF-306.5ZE
	7	CF-307ZE
	7.5	CF-307.5ZE
	8	CF-308ZE
	8.5	CF-308.5ZE
	9	CF-309ZE
	9.5	CF-309.5ZE
	10	CF-310ZE
	10.5	CF-310.5ZE
	11	CF-311ZE
	11.5	CF-311.5ZE
	12	CF-312ZE
	12.5	CF-312.5ZE
	13	CF-313ZE
	14	CF-314ZE
	15	CF-315ZE
	16	CF-316ZE
	17	CF-317ZE
	18	CF-318ZE
	19	CF-319ZE
	20	CF-320ZE
	twenty two	CF-322ZE
	twenty five	CF-325ZE
	28	CF-328ZE
	30	CF-330ZE
	32	CF-332ZE
	35	CF-335ZE
	40	CF-340ZE
