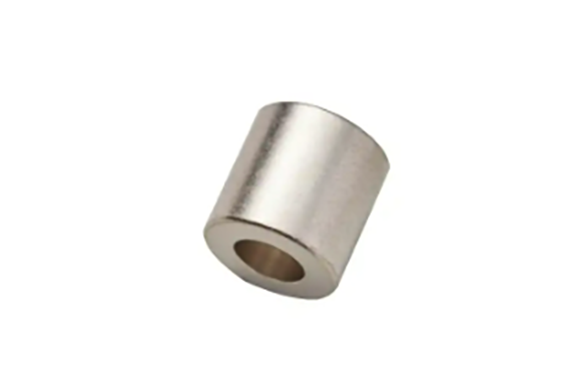

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CF-500N

Specification

Material

Free-cutting steel (SUM)

process

Electroless nickel plating (electroless Ni)

Exterior drawings

Screw diameter	L	Part Number
For M5	1	CF-501N
	1.5	CF-501.5N
	2	CF-502N
	2.5	CF-502.5N
	3	CF-503N
	3.5	CF-503.5N
	4	CF-504N
	4.5	CF-504.5N
	5	CF-505N
	5.5	CF-505.5N
	6	CF-506N
	6.5	CF-506.5N
	7	CF-507N
	7.5	CF-507.5N
	8	CF-508N
	8.5	CF-508.5N
	9	CF-509N
	9.5	CF-509.5N
	10	CF-510N
	11	CF-511N
	12	CF-512N
	13	CF-513N
	14	CF-514N
	15	CF-515N
	16	CF-516N
	17	CF-517N
	18	CF-518N
	19	CF-519N
	20	CF-520N
	twenty two	CF-522N
	twenty five	CF-525N
	28	CF-528N
	30	CF-530N
	35	CF-535N
	40	CF-540N
	45	CF-545N
	50	CF-550N
