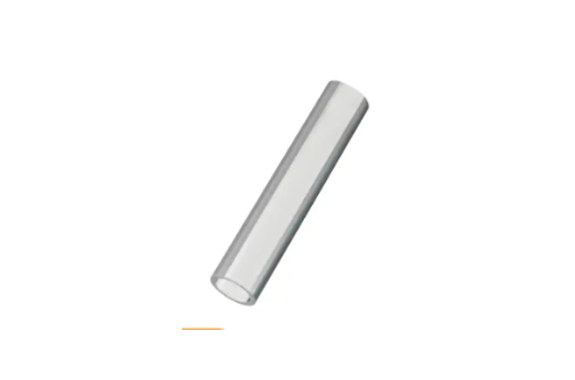

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CPC-400

Specification

Material

PC (Polycarbonate)

color

transparent

Heat distortion temperature

1.82Mpa…130℃

UL standard

UL94V-2 (material)

Exterior drawings

Outer diameter Φ8
L tolerance:
±0.1 up to L=15
, ±0.2 from L=16 to 50,
±0.4 from L=52

*However, for CPC-452 to CPC-4200, the minimum order is 10 units.

Screw diameter	L	Part Number
For M4	1	CPC-401
	1.5	CPC-401.5
	2	CPC-402
	2.5	CPC-402.5
	3	CPC-403
	3.5	CPC-403.5
	4	CPC-404
	4.5	CPC-404.5
	5	CPC-405
	5.5	CPC-405.5
	6	CPC-406
	6.5	CPC-406.5
	7	CPC-407
	7.5	CPC-407.5
	8	CPC-408
	8.5	CPC-408.5
	9	CPC-409
	9.5	CPC-409.5
	10	CPC-410
	11	CPC-411
	12	CPC-412
	13	CPC-413
	14	CPC-414
	15	CPC-415
	16	CPC-416
	17	CPC-417
	18	CPC-418
	19	CPC-419
	20	CPC-420
	twenty one	CPC-421
	twenty two	CPC-422
	twenty three	CPC-423
	twenty four	CPC-424
	twenty five	CPC-425
	26	CPC-426
	27	CPC-427
	28	CPC-428
	29	CPC-429
	30	CPC-430
	35	CPC-435
	40	CPC-440
	45	CPC-445
	50	CPC-450
	52	CPC-452
	55	CPC-455
	58	CPC-458
	60	CPC-460
	62	CPC-462
	65	CPC-465
	68	CPC-468
	70	CPC-470
	72	CPC-472
	75	CPC-475
	78	CPC-478
	80	CPC-480
	82	CPC-482
	85	CPC-485
	88	CPC-488
	90	CPC-490
	92	CPC-492
	95	CPC-495
	98	CPC-498
	100	CPC-4100
	105	CPC-4105
110	CPC-4110
115	CPC-4115
120	CPC-4120
125	CPC-4125
130	CPC-4130
135	CPC-4135
140	CPC-4140
145	CPC-4145
150	CPC-4150
155	CPC-4155
160	CPC-4160
165	CPC-4165
170	CPC-4170
175	CPC-4175
180	CPC-4180
185	CPC-4185
190	CPC-4190
195	CPC-4195
200	CPC-4200
