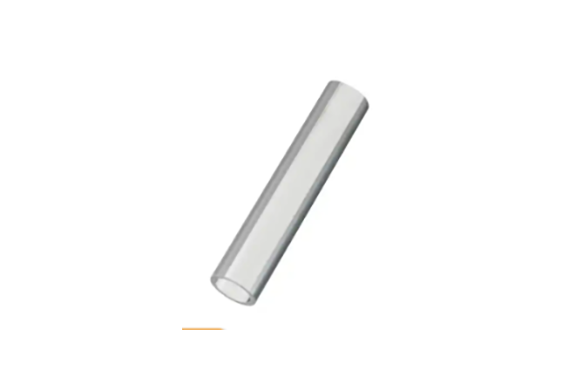

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CPC-500

Specification

Material

PC (Polycarbonate)

color

transparent

Heat distortion temperature

1.82Mpa…130℃

UL standard

UL94V-2 (material)

Exterior drawings

Outer diameter Φ8
L tolerance:
±0.1 up to L=15
, ±0.2 from L=16 to 50,
±0.4 from L=52

*However, for CPC-552 to CPC-5200, the minimum order is 10 units.

Screw diameter	L	Part Number
For M5	1	CPC-501
	1.5	CPC-501.5
	2	CPC-502
	2.5	CPC-502.5
	3	CPC-503
	3.5	CPC-503.5
	4	CPC-504
	4.5	CPC-504.5
	5	CPC-505
	5.5	CPC-505.5
	6	CPC-506
	6.5	CPC-506.5
	7	CPC-507
	7.5	CPC-507.5
	8	CPC-508
	8.5	CPC-508.5
	9	CPC-509
	9.5	CPC-509.5
	10	CPC-510
	11	CPC-511
	12	CPC-512
	13	CPC-513
	14	CPC-514
	15	CPC-515
	16	CPC-516
	17	CPC-517
	18	CPC-518
	19	CPC-519
	20	CPC-520
	twenty one	CPC-521
	twenty two	CPC-522
	twenty three	CPC-523
	twenty four	CPC-524
	twenty five	CPC-525
	26	CPC-526
	27	CPC-527
	28	CPC-528
	29	CPC-529
	30	CPC-530
	35	CPC-535
	40	CPC-540
	45	CPC-545
	50	CPC-550
	52	CPC-552
	55	CPC-555
	58	CPC-558
	60	CPC-560
	62	CPC-562
	65	CPC-565
	68	CPC-568
	70	CPC-570
	72	CPC-572
	75	CPC-575
	78	CPC-578
	80	CPC-580
	82	CPC-582
	85	CPC-585
	88	CPC-588
	90	CPC-590
	92	CPC-592
	95	CPC-595
	98	CPC-598
	100	CPC-5100
	105	CPC-5105
110	CPC-5110
115	CPC-5115
120	CPC-5120
125	CPC-5125
130	CPC-5130
135	CPC-5135
140	CPC-5140
145	CPC-5145
150	CPC-5150
155	CPC-5155
160	CPC-5160
165	CPC-5165
170	CPC-5170
175	CPC-5175
180	CPC-5180
185	CPC-5185
190	CPC-5190
195	CPC-5195
200	CPC-5200
