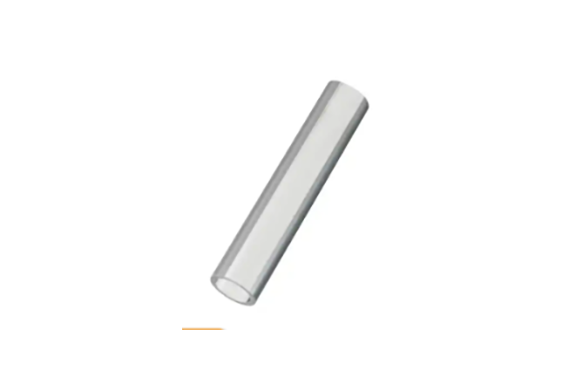

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CPC-600

Specification

Material

PC (Polycarbonate)

color

transparent

Heat distortion temperature

1.82Mpa…130℃

UL standard

UL94V-2 (material)

Exterior drawings

Outer diameter Φ10
L tolerance:
±0.1 up to L=15
, ±0.2 from L=16 to 50,
±0.4 from L=52

*However, for CPC-652 to CPC-6200, the minimum order is 10 units.

Screw diameter	L	Part Number
For M6	2	CPC-602
	3	CPC-603
	4	CPC-604
	5	CPC-605
	6	CPC-606
	7	CPC-607
	8	CPC-608
	9	CPC-609
	10	CPC-610
	11	CPC-611
	12	CPC-612
	13	CPC-613
	14	CPC-614
	15	CPC-615
	16	CPC-616
	17	CPC-617
	18	CPC-618
	19	CPC-619
	20	CPC-620
	twenty one	CPC-621
	twenty two	CPC-622
	twenty three	CPC-623
	twenty four	CPC-624
	twenty five	CPC-625
	26	CPC-626
	27	CPC-627
	28	CPC-628
	29	CPC-629
	30	CPC-630
	35	CPC-635
	40	CPC-640
	45	CPC-645
	50	CPC-650
	52	CPC-652
	55	CPC-655
	58	CPC-658
	60	CPC-660
	62	CPC-662
	65	CPC-665
	68	CPC-668
	70	CPC-670
	72	CPC-672
	75	CPC-675
	78	CPC-678
	80	CPC-680
	82	CPC-682
	85	CPC-685
	88	CPC-688
	90	CPC-690
	92	CPC-692
	95	CPC-695
	98	CPC-698
	100	CPC-6100
	105	CPC-6105
	110	CPC-6110
	115	CPC-6115
	120	CPC-6120
	125	CPC-6125
	130	CPC-6130
	135	CPC-6135
	140	CPC-6140
	145	CPC-6145
	150	CPC-6150
	155	CPC-6155
160	CPC-6160
165	CPC-6165
170	CPC-6170
175	CPC-6175
180	CPC-6180
185	CPC-6185
190	CPC-6190
195	CPC-6195
200	CPC-6200
