Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CU-2600PH

Specification

Material

Stainless steel (SUS304)

process

Degreasing

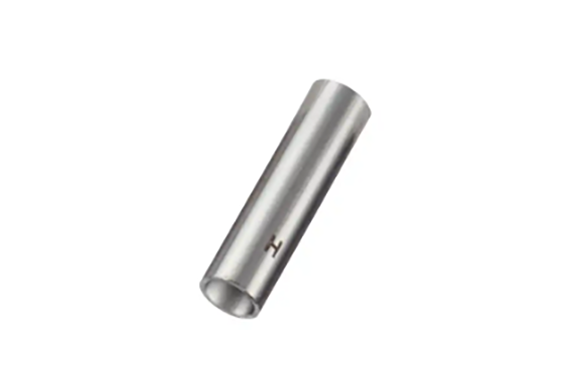

*The stainless steel 304 spacer is made of high-grade stainless steel. The H symbol is engraved on the spacer body.

Exterior drawings

L tolerance
: ±0.1 up to L=30
, ±0.2 from L=31 to 35

Screw diameter	L	Part Number
M2.6	2	CU-2602PH
	2.5	CU-2602.5PH
	3	CU-2603PH
	3.5	CU-2603.5PH
	4	CU-2604PH
	4.5	CU-2604.5PH
	5	CU-2605PH
	5.5	CU-2605.5PH
	6	CU-2606PH
	6.5	CU-2606.5PH
	7	CU-2607PH
	7.5	CU-2607.5PH
	8	CU-2608PH
	8.5	CU-2608.5PH
	9	CU-2609PH
	9.5	CU-2609.5PH
	10	CU-2610PH
	11	CU-2611PH
	12	CU-2612PH
	13	CU-2613PH
	14	CU-2614PH
	15	CU-2615PH
	16	CU-2616PH
	17	CU-2617PH
	18	CU-2618PH
	19	CU-2619PH
	20	CU-2620PH
	twenty five	CU-2625PH
	30	CU-2630PH
	31	CU-2631PH
	32	CU-2632PH
	33	CU-2633PH
	34	CU-2634PH
	35	CU-2635PH
