Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CU-300PH

Specification

Material

Stainless steel (SUS304)

process

Degreasing

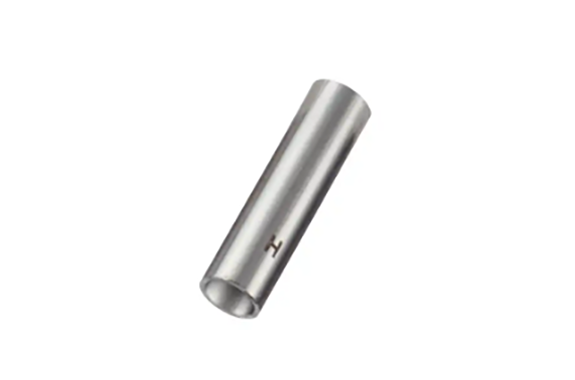

*The stainless steel 304 spacer is made of high-grade stainless steel. The H symbol is engraved on the spacer body.

Exterior drawings

L tolerance:
±0.1 up to L=30
, ±0.2 from L=35 to L=40
, ±0.3 from L=42 to L=50,
±0.4 from L=52

*However, for CU-352PH to CU-3150PH, the minimum order is 10 units.

Screw diameter	L	Part Number
M3	2	CU-302PH
	2.5	CU-302.5PH
	3	CU-303PH
	3.5	CU-303.5PH
	4	CU-304PH
	4.5	CU-304.5PH
	5	CU-305PH
	5.5	CU-305.5PH
	6	CU-306PH
	6.5	CU-306.5PH
	7	CU-307PH
	7.5	CU-307.5PH
	8	CU-308PH
	8.5	CU-308.5PH
	9	CU-309PH
	9.5	CU-309.5PH
	10	CU-310PH
	11	CU-311PH
	12	CU-312PH
	13	CU-313PH
	14	CU-314PH
	15	CU-315PH
	16	CU-316PH
	17	CU-317PH
	18	CU-318PH
	19	CU-319PH
	20	CU-320PH
	twenty one	CU-321PH
	twenty two	CU-322PH
	twenty three	CU-323PH
	twenty four	CU-324PH
	twenty five	CU-325PH
	26	CU-326PH
	27	CU-327PH
	28	CU-328PH
	29	CU-329PH
	30	CU-330PH
	35	CU-335PH
	40	CU-340PH
	42	CU-342PH
	45	CU-345PH
	48	CU-348PH
	50	CU-350PH
	52	CU-352PH
	55	CU-355PH
	58	CU-358PH
	60	CU-360PH
	62	CU-362PH
	65	CU-365PH
	68	CU-368PH
	70	CU-370PH
	72	CU-372PH
	75	CU-375PH
	78	CU-378PH
	80	CU-380PH
	82	CU-382PH
	85	CU-385PH
	88	CU-388PH
	90	CU-390PH
	92	CU-392PH
	95	CU-395PH
	98	CU-398PH
	100	CU-3100PH
	105	CU-3105PH
110	CU-3110PH
115	CU-3115PH
120	CU-3120PH
125	CU-3125PH
130	CU-3130PH
135	CU-3135PH
140	CU-3140PH
145	CU-3145PH
150	CU-3150PH
