Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CU-400PU

Specification

Material

Stainless steel (SUS316)

process

Degreasing

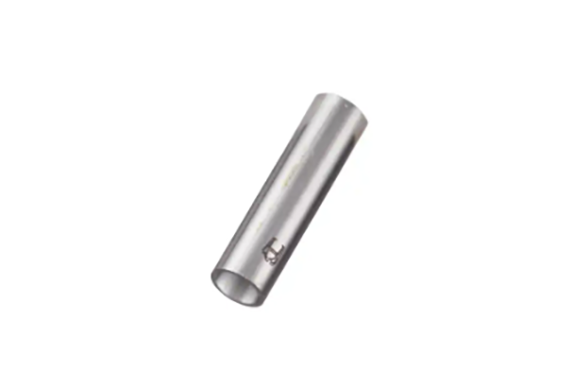

*The stainless steel 316 spacer is made of high-grade stainless steel with excellent acid and chemical resistance. The symbol is engraved
on the spacer body.

Exterior drawings

L tolerance:
±0.1 up to L=30
, ±0.2 from L=35 to L=40,
±0.3 from L=45

Screw diameter	L	Part Number
M4	2	CU-402PU
	3	CU-403PU
	4	CU-404PU
	5	CU-405PU
	6	CU-406PU
	7	CU-407PU
	8	CU-408PU
	9	CU-409PU
	10	CU-410PU
	11	CU-411PU
	12	CU-412PU
	13	CU-413PU
	14	CU-414PU
	15	CU-415PU
	16	CU-416PU
	17	CU-417PU
	18	CU-418PU
	19	CU-419PU
	20	CU-420PU
	twenty five	CU-425PU
	30	CU-430PU
	35	CU-435PU
	40	CU-440PU
	45	CU-445PU
	50	CU-450PU
