Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CU-400U

Specification

Material

Stainless steel (SUS316)

Process

Degreasing

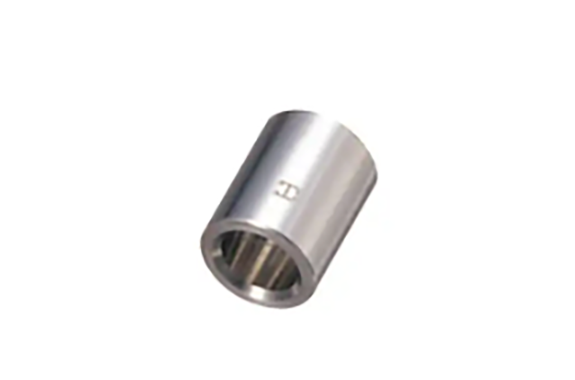

*The stainless steel 316 spacer is made of high-grade stainless steel with excellent acid and chemical resistance. The symbol is engraved
on the spacer body.

Exterior drawings

Screw diameter	L	Part Number
M4	2	CU-402U
	2.5	CU-402.5U
	3	CU-403U
	3.5	CU-403.5U
	4	CU-404U
	4.5	CU-404.5U
	5	CU-405U
	5.5	CU-405.5U
	6	CU-406U
	6.5	CU-406.5U
	7	CU-407U
	7.5	CU-407.5U
	8	CU-408U
	8.5	CU-408.5U
	9	CU-409U
	9.5	CU-409.5U
	10	CU-410U
	12	CU-412U
	15	CU-415U
	18	CU-418U
	20	CU-420U
