Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CU-600PH

Specification

Material

Stainless steel (SUS304)

process

Degreasing

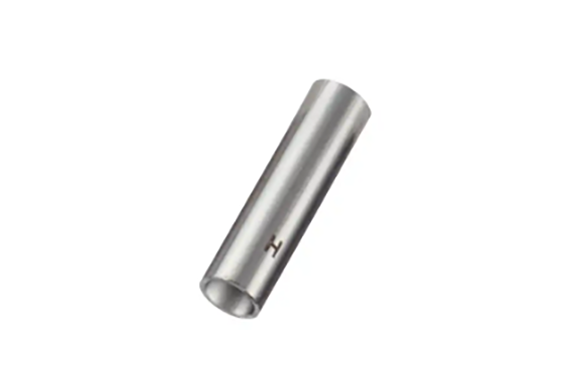

*The stainless steel 304 spacer is made of high-grade stainless steel.  The H symbol is engraved on the spacer body.

Exterior drawings

L tolerance:
±0.1 up to L=30
, ±0.2 up to L=35-40,
±0.3 up to L=45-50,
±0.4 from L=52

*However, for CU-652PH to CU-6180PH, the minimum order is 10 units.

Screw diameter	L	Part Number
M6	2	CU-602PH
	3	CU-603PH
	4	CU-604PH
	5	CU-605PH
	6	CU-606PH
	7	CU-607PH
	8	CU-608PH
	9	CU-609PH
	10	CU-610PH
	11	CU-611PH
	12	CU-612PH
	13	CU-613PH
	14	CU-614PH
	15	CU-615PH
	16	CU-616PH
	17	CU-617PH
	18	CU-618PH
	19	CU-619PH
	20	CU-620PH
	twenty two	CU-622PH
	twenty five	CU-625PH
	28	CU-628PH
	30	CU-630PH
	35	CU-635PH
	40	CU-640PH
	45	CU-645PH
	50	CU-650PH
	52	CU-652PH
	55	CU-655PH
	58	CU-658PH
	60	CU-660PH
	62	CU-662PH
	65	CU-665PH
	68	CU-668PH
	70	CU-670PH
	72	CU-672PH
	75	CU-675PH
	78	CU-678PH
	80	CU-680PH
	82	CU-682PH
	85	CU-685PH
	88	CU-688PH
	90	CU-690PH
	92	CU-692PH
	95	CU-695PH
	98	CU-698PH
	100	CU-6100PH
	105	CU-6105PH
	110	CU-6110PH
	115	CU-6115PH
	120	CU-6120PH
	125	CU-6125PH
	130	CU-6130PH
	135	CU-6135PH
	140	CU-6140PH
	145	CU-6145PH
	150	CU-6150PH
	155	CU-6155PH
	160	CU-6160PH
	165	CU-6165PH
	170	CU-6170PH
	175	CU-6175PH
	180	CU-6180PH
