Manufacturer: Hirosugi Instruments Co., Ltd.
Model: KRB-2000

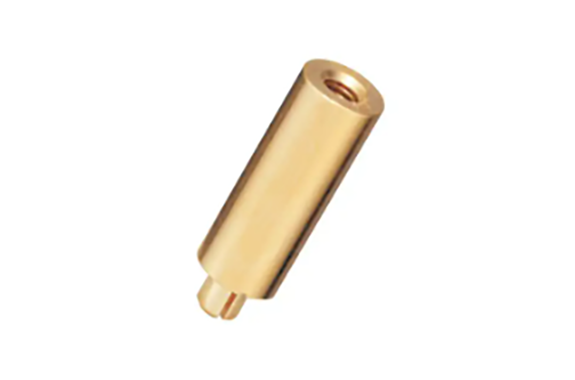

This is a spacer type terminal that is attached to the board by soldering.

Specification

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Gold flash (nickel undercoat)

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ
M2 (0.4)	5	KRB-2005	2.5
	6	KRB-2006	3
	7	KRB-2007	4
	8	KRB-2008	5
	9	KRB-2009	5
	10	KRB-2010	5
	11	KRB-2011	5
	12	KRB-2012	5
	13	KRB-2013	5
	14	KRB-2014	5
	15	KRB-2015	5
