Manufacturer: Hirosugi Instruments Co., Ltd.
Model: KRB-2600

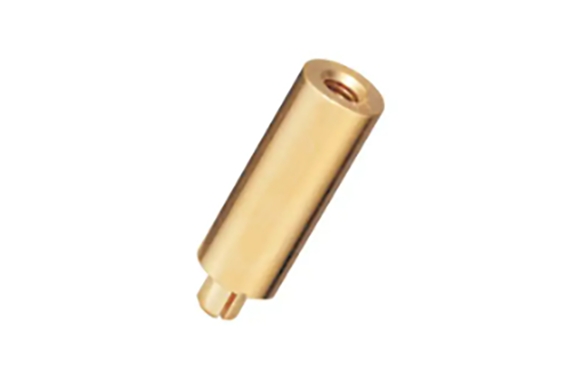

This is a spacer type terminal that is attached to the board by soldering.

Specification

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Gold flash (nickel undercoat)

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ
M2.6 (0.45)	5	KRB-2605	2.5
	6	KRB-2606	3
	7	KRB-2607	4
	8	KRB-2608	5.5
	9	KRB-2609	6
	10	KRB-2610	6
	11	KRB-2611	6
	12	KRB-2612	6
	13	KRB-2613	6
	14	KRB-2614	6
	15	KRB-2615	6
