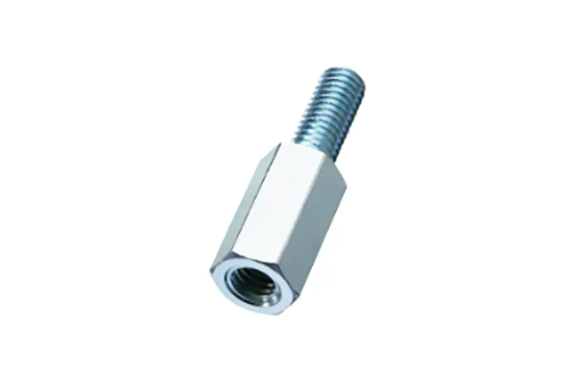

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: LSF-800-20E

Specification

Material

Free-cutting steel (SUM)

process

Trivalent chromium chromate treatment

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=65 to 100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M8 (1.25)	30	LSF-830-20E	17
	35	LSF-835-20E	17
	40	LSF-840-20E	17
	45	LSF-845-20E	17
	50	LSF-850-20E	17
	55	LSF-855-20E	17
	60	LSF-860-20E	17
	65	LSF-865-20E	17
	70	LSF-870-20E	17
	75	LSF-875-20E	17
	80	LSF-880-20E	17
	85	LSF-885-20E	17
	90	LSF-890-20E	17
	95	LSF-895-20E	17
	100	LSF-8100-20E	17
	110	LSF-8110-20E	17
	120	LSF-8120-20E	17
	125	LSF-8125-20E	17
	130	LSF-8130-20E	17
	140	LSF-8140-20E	17
	150	LSF-8150-20E	17
