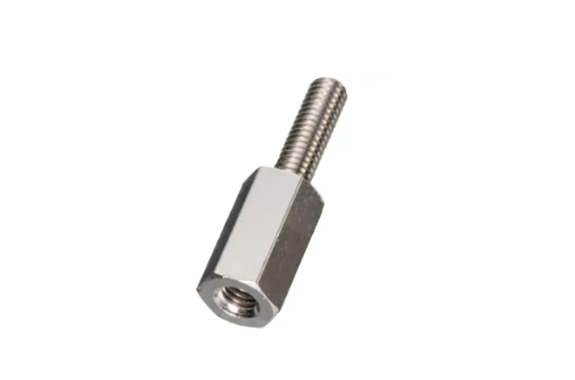

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: LSU-300-08

Specification

Material

Free-cutting stainless steel (SUS303)

process

Degreasing

Exterior drawings

Male screw length 8mm

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	4	LSU-304-08	2
	4.5	LSU-304.5-08	2.5
	5	LSU-305-08	3
	5.5	LSU-305.5-08	3.5
	6	LSU-306-08	4
	6.5	LSU-306.5-08	4.5
	7	LSU-307-08	5
	7.5	LSU-307.5-08	5.5
	8	LSU-308-08	6
	8.5	LSU-308.5-08	6
	9	LSU-309-08	6
	9.5	LSU-309.5-08	6
	10	LSU-310-08	6
	11	LSU-311-08	6
	12	LSU-312-08	6
	12.5	LSU-312.5-08	6
	13	LSU-313-08	6
	14	LSU-314-08	6
	15	LSU-315-08	6
	16	LSU-316-08	6
	16.5	LSU-316.5-08	6
	17	LSU-317-08	6
	17.5	LSU-317.5-08	6
	18	LSU-318-08	6
	19	LSU-319-08	6
	20	LSU-320-08	6
	twenty one	LSU-321-08	6
	twenty two	LSU-322-08	6
	twenty three	LSU-323-08	6
	twenty four	LSU-324-08	6
	twenty five	LSU-325-08	6
	26	LSU-326-08	6
	27	LSU-327-08	6
	28	LSU-328-08	6
	29	LSU-329-08	6
	30	LSU-330-08	6
	31	LSU-331-08	6
	32	LSU-332-08	6
	33	LSU-333-08	6
	34	LSU-334-08	6
	35	LSU-335-08	6
	36	LSU-336-08	6
	37	LSU-337-08	6
	38	LSU-338-08	6
	39	LSU-339-08	6
	40	LSU-340-08	6
	41	LSU-341-08	6
	42	LSU-342-08	6
	43	LSU-343-08	6
	44	LSU-344-08	6
	45	LSU-345-08	6
	46	LSU-346-08	6
	47	LSU-347-08	6
	48	LSU-348-08	6
	49	LSU-349-08	6
	50	LSU-350-08	6
	51	LSU-351-08	6
	52	LSU-352-08	6
	53	LSU-353-08	6
	54	LSU-354-08	6
	55	LSU-355-08	6
	56	LSU-356-08	6
	57	LSU-357-08	6
	58	LSU-358-08	6
59	LSU-359-08	6
60	LSU-360-08	6
