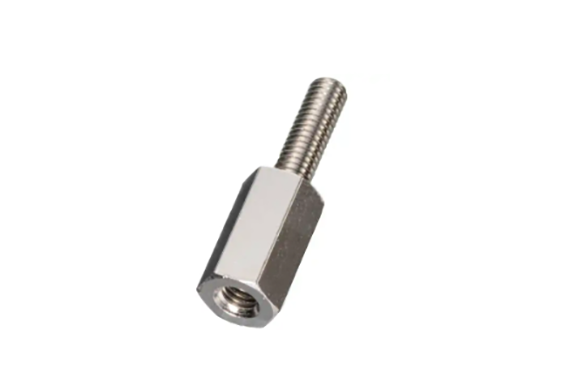

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: LSU-800-20

Specification

Material

Free-cutting stainless steel (SUS303)

process

Degreasing

Exterior drawings

L tolerance:
up to L=60 ±0.1,
L=65 to 100 ±0.2,
L=110 and above ±0.3

Thread diameter (pitch)	L	Part Number	ℓ1
M8 (1.25)	30	LSU-830-20	17
	35	LSU-835-20	17
	40	LSU-840-20	17
	45	LSU-845-20	17
	50	LSU-850-20	17
	55	LSU-855-20	17
	60	LSU-860-20	17
	65	LSU-865-20	17
	70	LSU-870-20	17
	75	LSU-875-20	17
	80	LSU-880-20	17
	85	LSU-885-20	17
	90	LSU-890-20	17
	95	LSU-895-20	17
	100	LSU-8100-20	17
	110	LSU-8110-20	17
	120	LSU-8120-20	17
	125	LSU-8125-20	17
	130	LSU-8130-20	17
	140	LSU-8140-20	17
	150	LSU-8150-20	17
