I.T.O Corporation

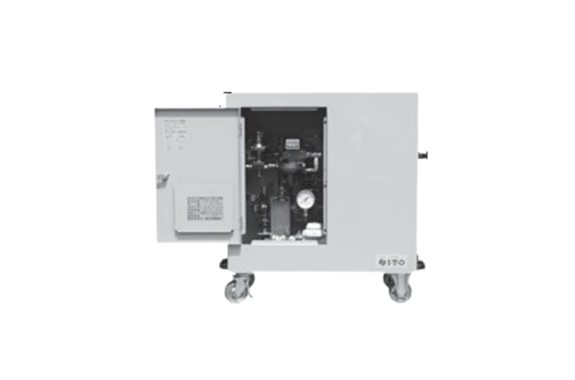

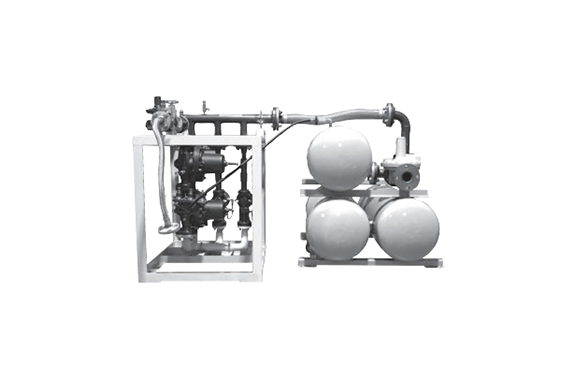

ITO PA Range PA System
Manufacturer: I.T.O Corporation
Model: PA Range
- Mixes propane with air to provide similar gas property to NG, to allow NG distribution to continue even during emergency or maintenance.
- Does not required any external power sources such as electricity.
- Safety devices ensure total security of the system without any complicated calorific value adjustments.
- Compact & lightweight body allows easy portability.
 |  |  |
 | ||
Specifications
| Model | PA-13A4NA | PA-13A8 | PA-13A30NA | PA-13A100-U-F |
|---|---|---|---|---|
| Capacity | 4m³/h(normal) (69.8kW) | 8m³/h(normal) (139.6kW) | 30m³/h(normal) (523kW) | 100m³/h(normal) (1743kW) |
| Feeder Gas | LPG containing 95% or more propane. | |||
| Total Calorific Value of Mixed Gas | 62.8MJ/m³ (15000kcal) | |||
| Outlet Pressure(kPa) | 1.50~2.50 | 1.70~2.30 | 1.50~2.50 | 1.50~2.50 |
* There are wide country differences in mix within LPG and also the blend of natural gas in use.
The PA requires exact matching of both source and target gas to ensure correct, most efficient, safe and highest quality burning. Please contact your ITO sales representative to enable us to carry out this match.
