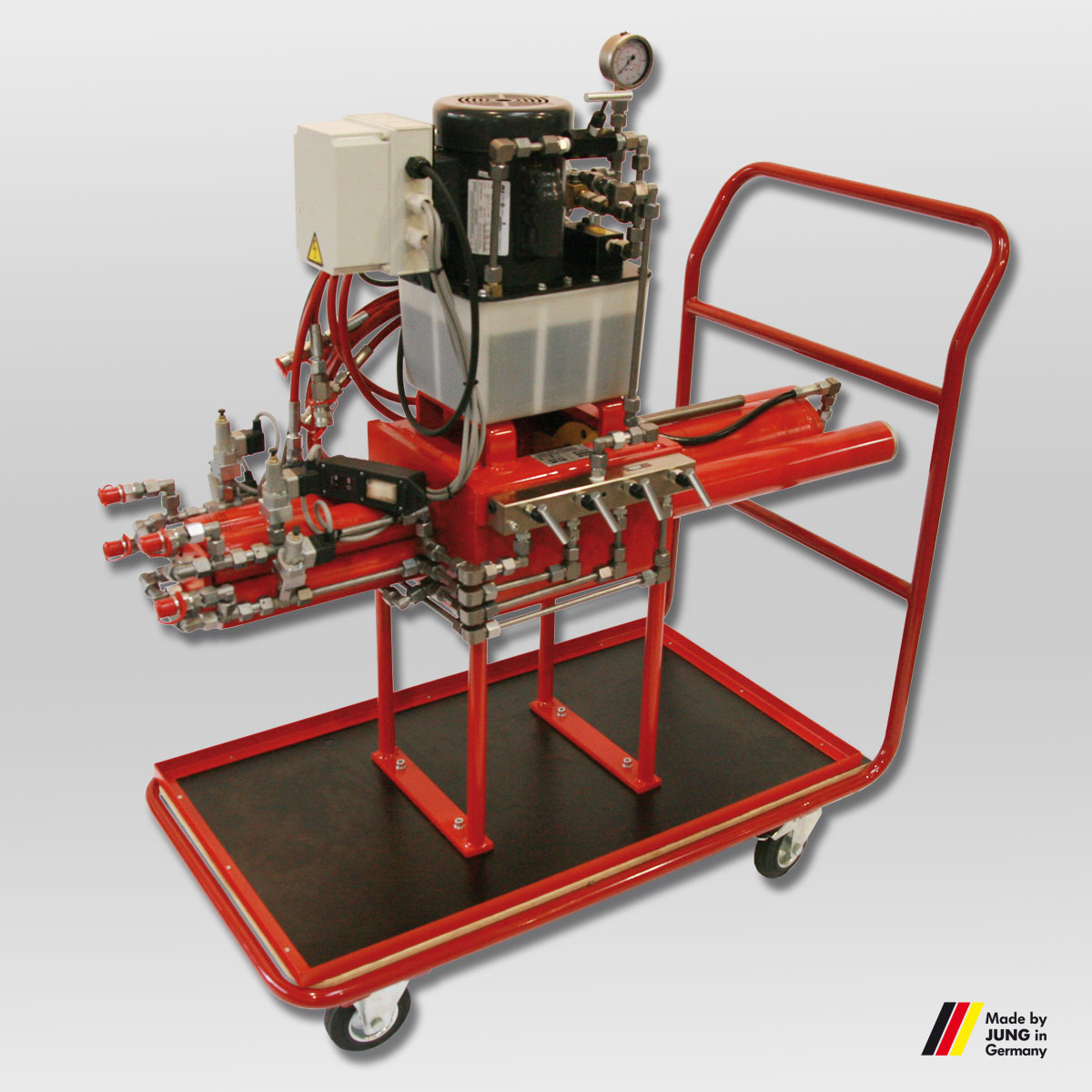

Jung JD Series Hydraulic Pressure Block
Made in Germany
Manufacturer: Jung
Model: JD Series: JD 40 E+VS, JD 80 E+VS
DESCRIPTION
Synchronized lifting and lowering of multiple jacks. For loads with decentralized center of gravity. Simple and safe.
Easy operation via push button (remote control).
All slave-cylinders equipped with 520 bar safety pressure valves. Controls monitor pressure switches with LED indicator preventing any possible overloading.
Clear and simple control unit, adjustable to control all or individual jacks. Also configurable for using three-point lifting system.
The complete system is mobile and conveniently mounted on a cart.
Retracting of the hydraulic jacks also without load (JH 15 – 20 G plus EX).
Load independent, maintains constant lifting speed.
Controllable lowering speed. Electrical pump JPE 30 and VScontrol unit for driving individual lifting devices.
Oil volume in the system JD 40 E+ VS is sufficient for up to 4 pcs. JH 10 G plus / JH 10 G plus EX / JHS 10. Larger jacks can be operated, but you need to lift twice to reach the full stroke.
The cylinders in the pressure block are outfitted with spring returns to retract the pistons automatically.
Specification
| TYPE | JD 40 E+ VS | JD 80 E+ VS |
|---|---|---|
| with electrical pump on a cart | yes | yes |
| Spring return | yes | yes |
| Dimensions length (l) mm | 1400 | 1800 |
| JACKS TO USE WITH PRESSURE BLOCK JD 40 E+ VS | LOAD CAPACITY IN KG |
|---|---|
| 4x JH 6 G plus (full stroke, without spring return) | 24,000 |
| 4x JH 5 (full stroke, without spring return) | 20,000 |
| 4x JH 10 G plus (full stroke, without spring return) | 40,000 |
| 4x JHS 10/JH 10 G plus ku (full stroke, without spring return) | 40,000 |
| 4x JH 15 G plus (lift twice to reach full stroke, without spring return) | 60,000 |
| 4x JH 15 G plus EX (lift twice to reach full stroke, with spring return) | 60,000 |
| 4x JH 20 G plus (lift twice to reach full stroke, without spring return) | 80,000 |
| 4x JH 20 G plus EX (lift twice to reach full stroke, with spring return) | 80,000 |
