Germany, Jung

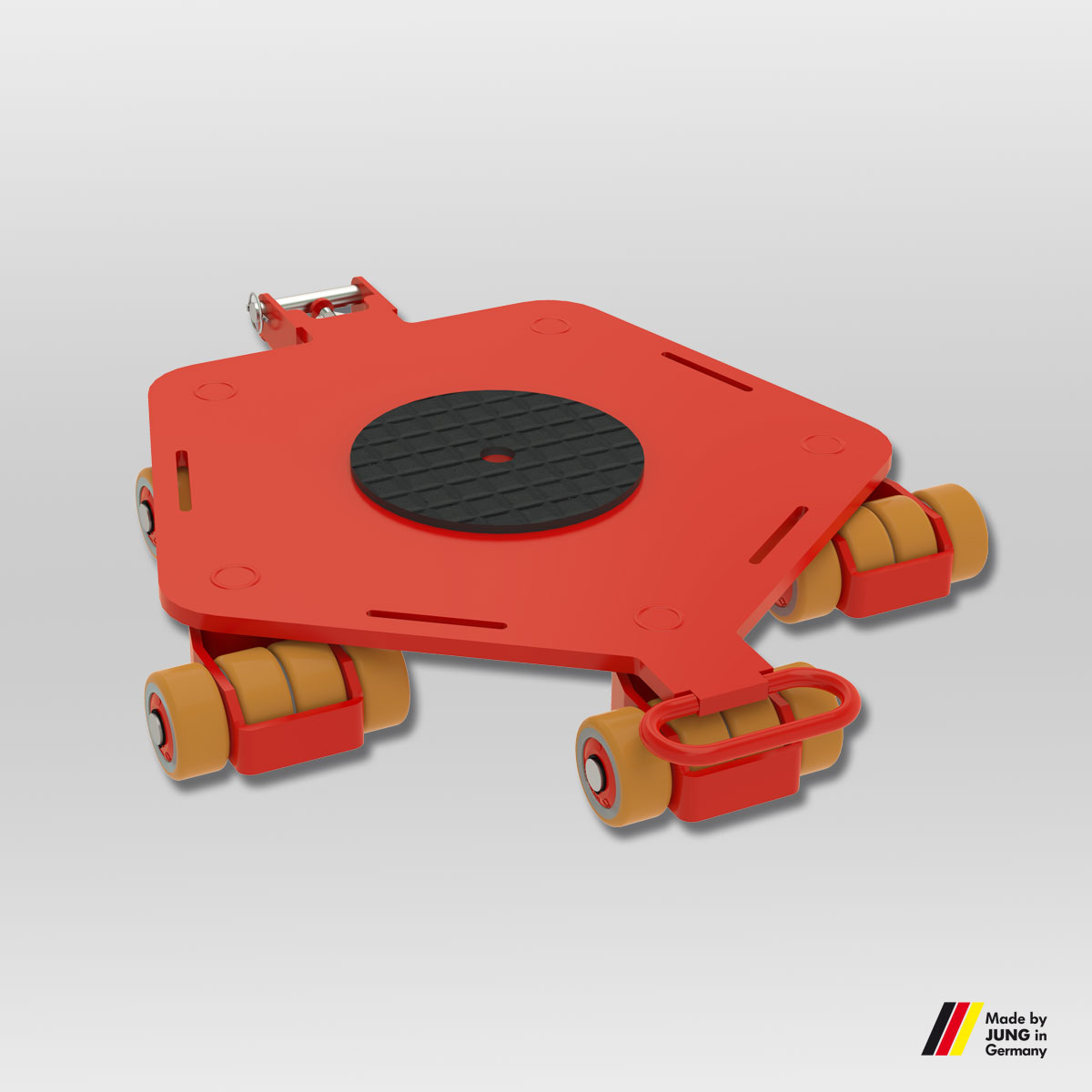

Jung JKB Revolving Transport Trolleys
Made in Germany
Manufacturer: Jung
Model: JKB : JKB 8 K, JKB 8 SET, JKB 10 G,JKB 10 SET,JKB 14 G, JKB 14 SET
DESCRIPTION
JKB 10 G/JKB 14 G have same height as transport trolleys series G.
Connecting bars as standard2000 mm, can be offered up to 3 m length.
High load capacity at low weight.
Bearing supported swiveling castors allow 360° maneuverability.
All products are also available in a set of two with price advantage.
In addition, all the trolleys have a platform center hole to allow attachement to the load.
Unrivalled: The narrow castors reduce rolling and turning resistance to a minimum.
Pulling handle and connecting bars available as accessories (see pages 66-67).
For choosing the adequate revolving trolley we recommend a load of two-third of the maximum capacity.
This will be the most advantageous compromise between payload, ergonomics and handling of the devices.
The load capacity specifications refer to a maximum speed of 2 km/h.
SPECIFICATION
| TYPE | JKB8K | JKB 8 SET | ||
| Consist of | 1 xJKB 8 K | 2xJKB 8 K | ||
| Load capacity | kg | 8000 | 2 x 8000 | |
| Number of castors | Pieces | 20 | 2×20 | |
| Castor dimensions | 0x1 | mm | 85×43 | 85×43 |
| Height | mm | 110‘ | 110‘ | |
| Supporting surface per cassette | 0C | mm | 250 | 250 |
| Cassette dimensions | LlxBl | mm | 895x 740 | 895x 740 |
| Weight JUWAmid | kg | 64 | 128 | |
| ORDER NO. with JUWAmid ORDER NO. with JUWAthan” | 14 080 085-P 14 080 085-VU | 14 080 085-D 14 080 085-DVU | ||
| TYPE | JKB 10 G | JKB 10 SET | KB 14 G | JKB 14 SET | |
| Consist of | 1 xJKB 10G | 2x JKB 10G | 1 xJKB 14G | 2x JKB 14 G | |
| Load capacity | kg | 10000 | 2x 10000 | 14000 | 2 x 14000 |
| Number of castors | Pieces | 8 | 2×8 | 12 | 2×12 |
| Castor dimensions | 0x1 mm | 140×59 | 140×59 | 140×59 | 140×59 |
| Height | mm | 180 | 180 | 180 | 180 |
| Supporting surface per cassette | 0C mm | 250 | 250 | 250 | 250 |
| Cassette dimensions | LlxBl mm | 975x 665 | 975 x665 | 975×720 | 975 x720 |
| Weight JUWAlhan® | kg | 127 | 254 | 148 | 296 |
| ORDER NO. with JUWAthan* | 14 101 140-VU | 14 101 140-DVU | 14 140 140-VU | 14 140 140-DVU |
