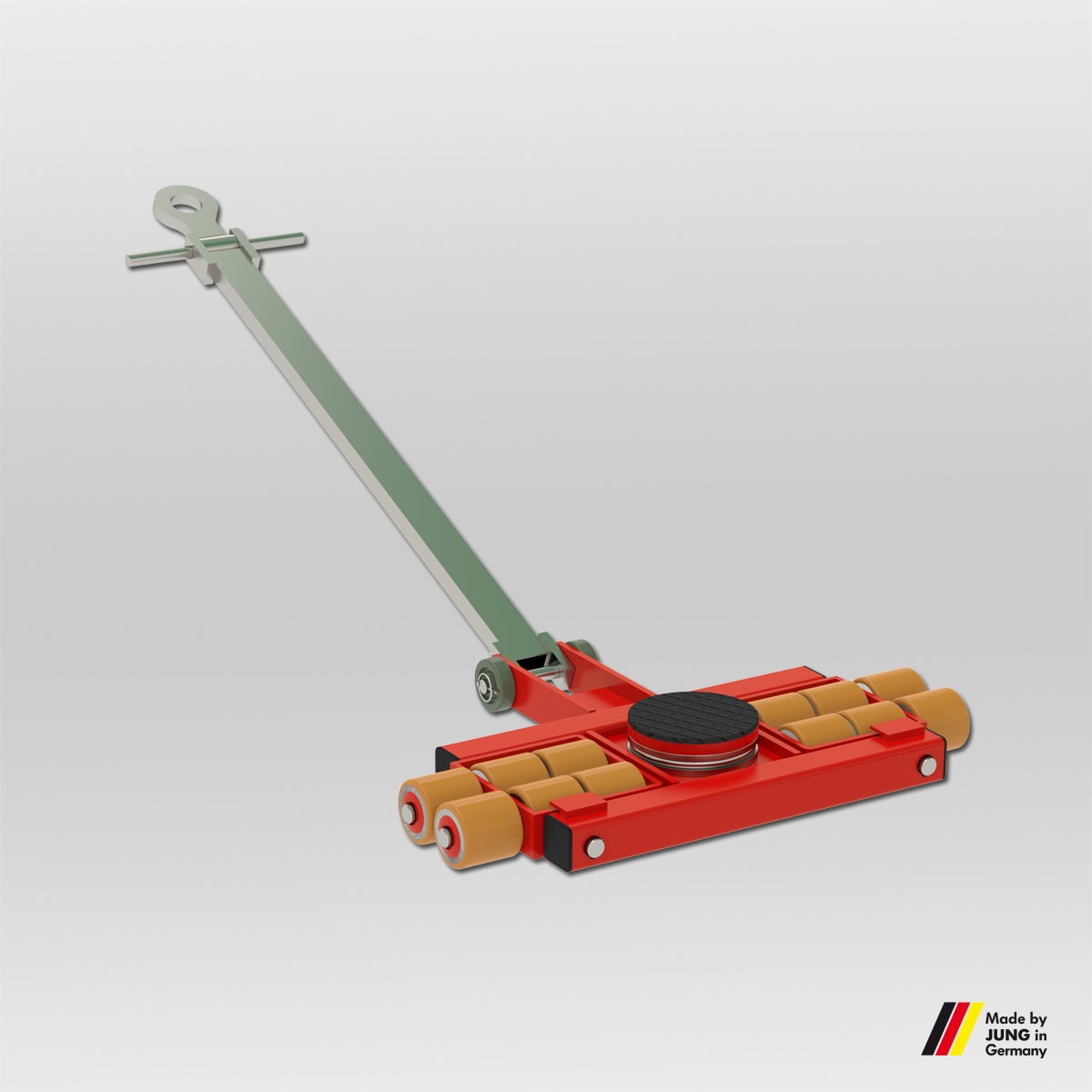

Jung K Professional Series Transport Trolleys

Made in Germany
Manufacturer: Jung
Model: K professional series: JBL 7K, JFB 7K, JL 10K, JFB 10K, JL 14K, JFB 14K

DESCRIPTION

K professional series

The double castor design results in dramatically easier steering due to reduced friction forces in curves.
The much lower friction resistance also causes the trolleys on the rear axis to follow a true-to-track course. Non-marking support wheels.
Higher capacity with professional castors, at the same dimension as series K trolleys.
The series K handlebars are now also available with a removable handle, which is also available as a re-fitting set.
Because of the professional castors you need 30% less power for steering.
All transport trolleys are ready for use: the steerable transport trolley is fitted with a ball-bearing supported turntable and a handlebar.
The adjustable-width transport trolley consists of two transport units and a connecting bar.
The load capacity specifications refer to a maximum speed of 2 km/h.

SPECIFICATION

TYPE JLB 7 K JFB 7 K JIL 10 K JFB 10 K
Load capacity (kg) 7,000 2 x 3,500 10,000 2 x 5,000
Number of twin castors (Pieces) 8 2 x 4 12 2 x 6
Castor dimensions ØxI (mm) 85 x 85 85 x 85 85 x 85 85 x 85
Height (mm) 110 110 110 110
Supporting surface per cassette ExF (mm) 170 x 170 170 x 170 170 x 170 170 x 170
Cassette dimensions L2 x B2 (mm) 325 x 390 325 x 390 325 x 390 325 x 390
Connecting bar with joint Length (mm) 1,230 1,230 1,230 1,230
Cassettes adjustable from – to G-H (mm) 400-1,030 400-1,030 400-1,030 400-1,030
Supporting surface of turntable ØC (mm) 150 150 170 170
Dimensions L1 x B1 (mm) 445 x 590 445 x 590 580 x 820 580 x 820
Handlebar with pulling eye Length (mm) 1,210 1,210 1,210 1,210
Weight Professional (kg) 35 27 56 35
ORDER NO. 07 071 085-D 08 071 085-D 07 100 085-D 08 101 085-D
TYPE JIJ 14 K JFB 14 K
Load capacity (kg) 14,000 2 x 7,000
Number of twin castors (Pieces) 16 2 x 8
Castor dimensions ØxI (mm) 85 x 85 85 x 85
Height (mm) 110 110
Supporting surface per cassette ExF (mm) 170 x 170 170 x 170
Cassette dimensions L2 x B2 (mm) 325 x 390 325 x 390
Connecting bar with joint Length (mm) 1,230 1,230
Cassettes adjustable from – to G-H (mm) 400-1,030 400-1,030
Supporting surface of turntable ØC (mm) 170 170
Dimensions L1 x B1 (mm) 580 x 1,000 580 x 1,000
Handlebar with pulling eye Length (mm) 1,210 1,210
Weight Professional (kg) 65 38
ORDER NO. 07 140 085-D 08 141 085-D

REQUEST QUOTATION
