Germany, Jung
Jung K Series Transport Trolleys
Made in Germany
Manufacturer: Jung
Model: K Series: JLB 3 K, JFB 3 K, JLB 6 K, JFB 6 K, JL 9 K, JFB 9 K,JL 12 K, JFB 12 K
DESCRIPTION
Equipped with highest quality castors as standard.
Reduced weight due to advanced construction of load cassettes.
Non-marking support wheels. The K-series towing bars are also available with a removable handle. The removable handle is also available as a re-fitting set.

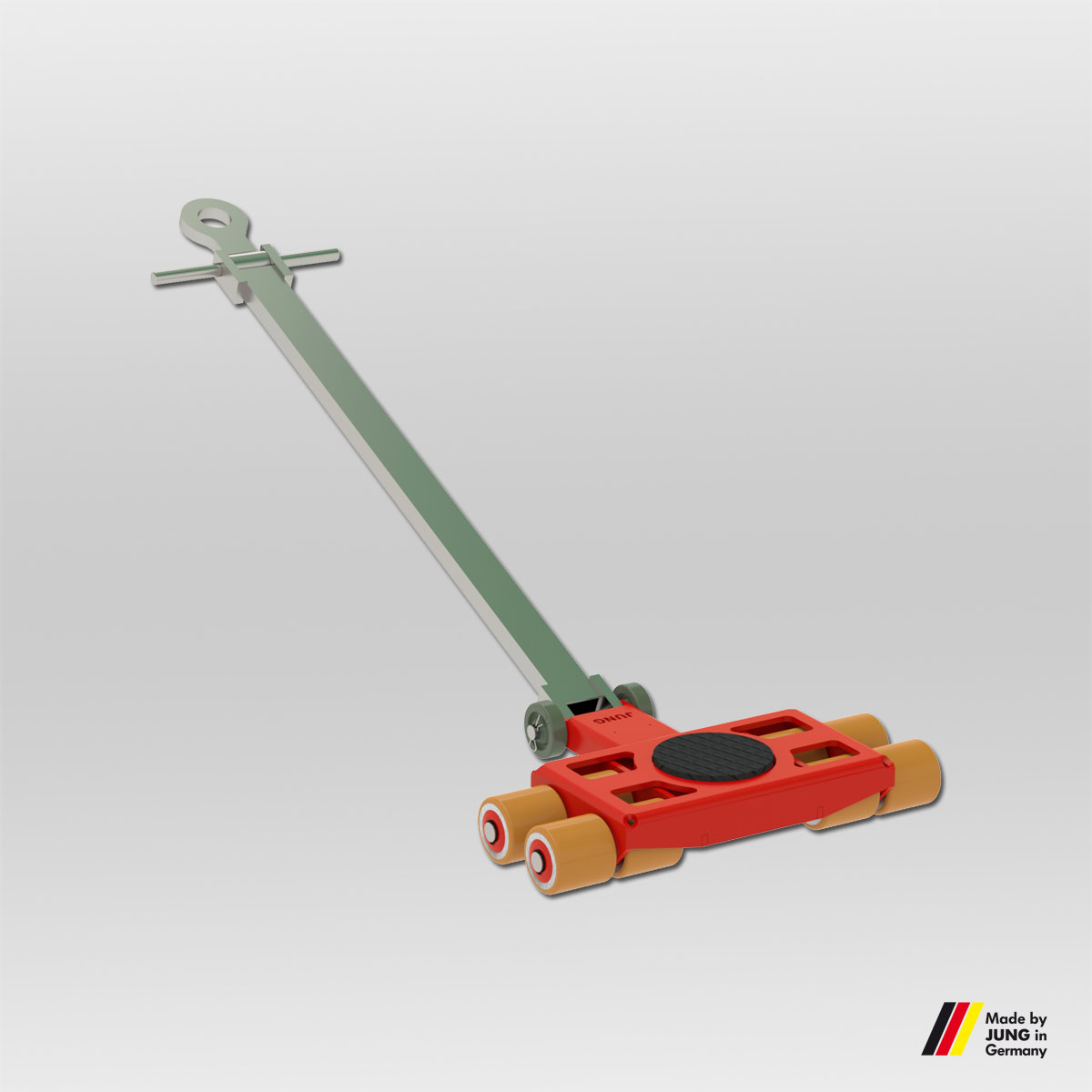

All transport trolleys are ready for use: The steerable transport trolley is fitted with a ball bearing supported turntable and a handlebar.
The adjustable-width transport trolley consists of tw transport units and connecting bar.
The load capacity specifications refer to a maximum speed of 2 km/h.
SPECIFICATION
| TYPE | JLB 3 K | JFB 3 K | JLB 6 K | JFB 6 K |
|---|---|---|---|---|
| Load capacity (kg) | 3,000 | 2 x 1,500 | 6,000 | 2 x 3,000 |
| Number of castors | 4 | 2 x 2 | 8 | 2 x 4 |
| Castor dimensions ØxI (mm) | 85 x 85 | 85 x 85 | 85 x 85 | 85 x 85 |
| Height (mm) | 110 | 110 | 110 | 110 |
| Supporting surface per cassette ExF (mm) | 120 x 80 | 120 x 80 | 170 x 170 | 170 x 170 |
| Cassette dimensions L2 x B2 (mm) | 190 x 115 | 190 x 115 | 325 x 200 | 325 x 200 |
| Connecting bar with joint Length (mm) | 1,000** | 1,000** | 1,230 | 1,230 |
| Cassettes adjustable from – to G-H (mm) | 125-880 | 125-880 | 400-1,030 | 400-1,030 |
| Supporting surface of turnable ØC (mm) | 150 | 150 | 150 | 150 |
| Dimensions L1 x B1 (mm) | 225 x 280 | 225 x 280 | 445 x 590 | 445 x 590 |
| Handlebar with pulling eye Length (mm) | 990* | 990* | 1,210 | 1,210 |
| Weight JUWAthan®plus (kg) | 12 | 11 | 34 | 25 |
| ORDER NO. | 07 031 085-V | 08 031 085-V | 07 061 085-V | 08 061 085-V |
| TYPE | JIL 9 K | JFB 9 K | JIL 12 K | JFB 12 K |
|---|---|---|---|---|
| Load capacity (kg) | 9,000 | 2 x 4,500 | 12,000 | 2 x 6,000 |
| Number of castors (Pieces) | 12 | 2 x 6 | 16 | 2 x 8 |
| Castor dimensions ØxI (mm) | 85 x 85 | 85 x 85 | 85 x 85 | 85 x 85 |
| Height (mm) | 110 | 110 | 110 | 110 |
| Supporting surface per cassette ExF (mm) | 170 x 170 | 170 x 170 | 170 x 170 | 170 x 170 |
| Cassette dimensions L2 x B2 (mm) | 325 x 390 | 325 x 390 | 325 x 390 | 325 x 390 |
| Connecting bar with joint Length (mm) | 1,230 | 1,230 | 1,230 | 1,230 |
| Cassettes adjustable from – to G-H (mm) | 400-1,030 | 400-1,030 | 400-1,030 | 400-1,030 |
| Supporting surface of turnable ØC (mm) | 170 | 170 | 170 | 170 |
| Dimensions L1 x B1 (mm) | 580 x 820 | 580 x 820 | 580 x 1,000 | 580 x 1,000 |
| Handlebar with pulling eye Length (mm) | 1,210 | 1,210 | 1,210 | 1,210 |
| Weight JUWAthan®plus (kg) | 49 | 31 | 62 | 34 |
| ORDER NO. | 07 090 085-V | 08 091 085-V | 07 120 085-V | 08 121 085-V |
