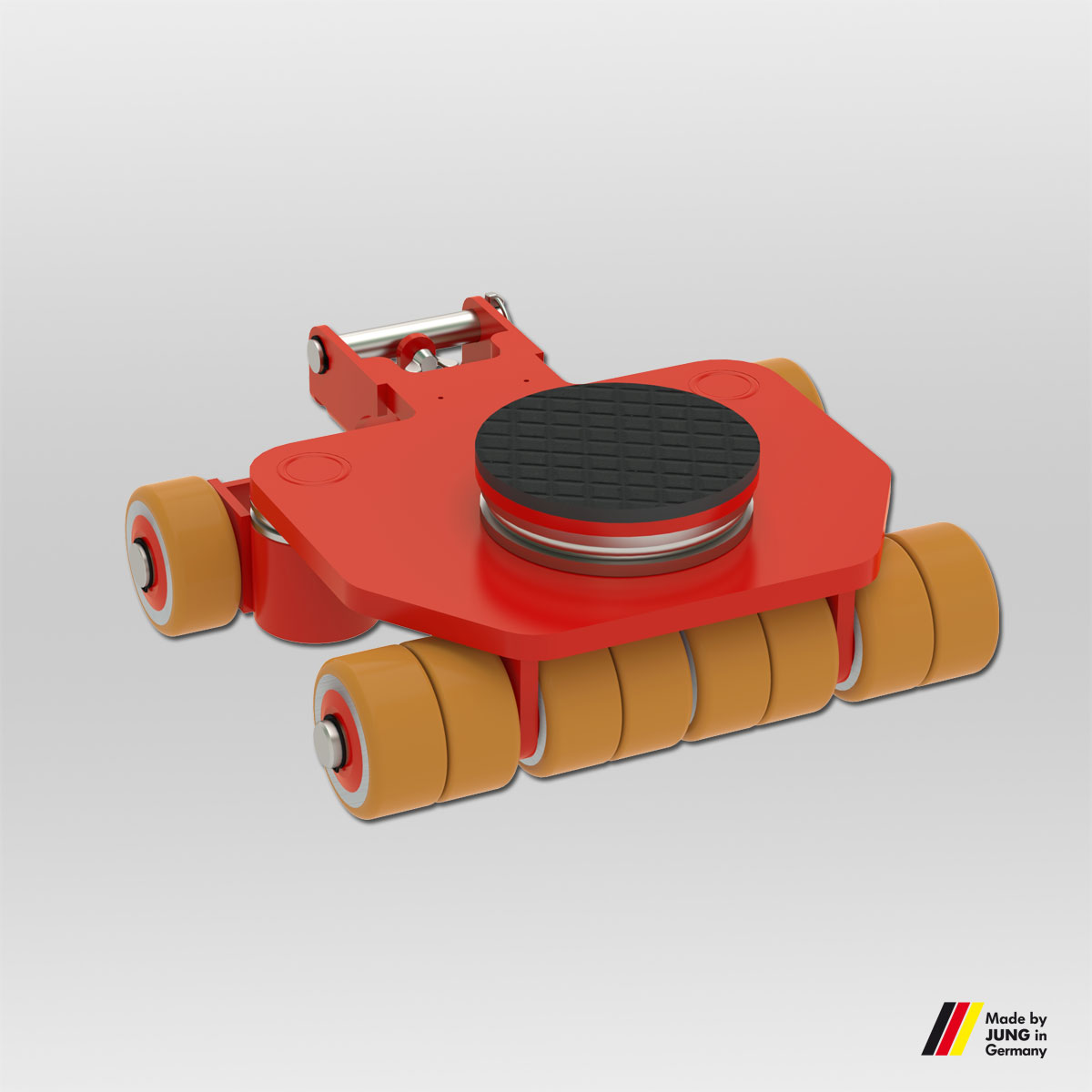

Jung M Series Multi-Purpose Trolleys
Made in Germany
Manufacturer: Jung
Model: M Series: JLF 3,5/ JLF 5/ JLF SET 12/ JLF SET 15
DESCRIPTION
Combines leading swiveling castors with trailing rigid castors.
Swiveling lead-castors make steering easier by up to 80%.
Ergonomic: Reduces handling effort for user.
Better directional stability on long straight-line paths with trailing rigid castors.
Trolleys can be used as steerable, adjustable or tandem trolley. Low installation height. Low weight.
Extreme maneuverable with thrust bearing supported, antislip turntable. Ideal for transporting loads on slalom paths including 90 trueto-course straightline, turning and sideways maneuvering.
Floor protective, non-marking coating.
Each trolley can be used for either steerable or straight-line movements.
An additional pulling handle for steering of rear-trailing trolleys for tighter turning radius is included in the set
The load capacity specifications refer to a maximum speed of 2 km/h.
SPECIFICATON
| TYPE | JLF 3,5 | JLF 5 |
|---|---|---|
| Load capacity (kg) | 3,500 | 5,000 |
| Number of castors / twin castors (Pieces) | 4/2 | 4/4 |
| Castor dimensions (mm) | 85 x 43 | 85 x 43 |
| Height (mm) | 150 | 150 |
| Supporting surface per cassette ØC (mm) | 150 | 150 |
| Dimensions L1 x B1 (mm) | 410 x 420 | 410 x 420 |
| Handlebar with pulling eye | – | – |
| Connecting bar | – | – |
| Weight JUWAthan®plus (kg) | 25 | 28 |
| ORDER NO. | 16 035 085-D | 16 050 085-D |
| TYPE | JLF SET 12 | JLF SET 15 |
|---|---|---|
| Load capacity (kg) | 1 x 5,000 + 2 x 3,500 | 3 x 5,000 |
| Number of castors/twin castors (Pieces) | 3 x 4/2 x 2 + 1 x 4 | 3 x 4/3 x 4 |
| Castor dimensions (mm) | 85 x 43 | 85 x 43 |
| Height (mm) | 150 | 150 |
| Supporting surface per cassette ØC (mm) | 150 | 150 |
| Dimensions L1 x B1 (mm) | 410 x 420 | 410 x 420 |
| Handlebar with pulling eye (mm) | 1210 | 1210 |
| Connecting bar ØxL (mm) | 20 x 1,200 | 20 x 1,200 |
| Weight JUWAthan®plus (kg) | 89 | 95 |
| ORDER NO. | 16 120 085-D | 16 150 085-D |
