Kitagawa Corporation.
Kitagawa Chuck Grease Pro Chuck Parts
Manufacturer: Kitagawa Corporation.
Model: Chuck Grease Pro
Feature:
Confirms to international standards for health, safety and the environment.
Loss of grip over time is reduced.
White grease is cleaner and reduces contamination.

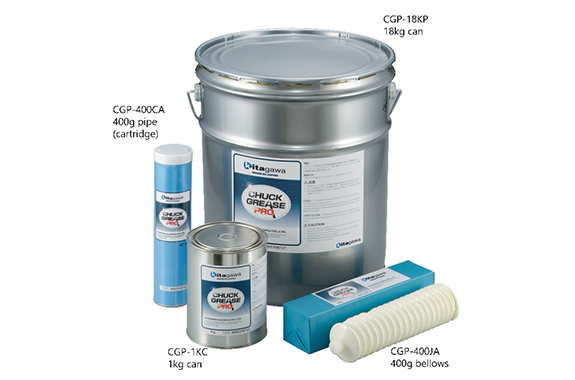

Various sizes available; 18kg can, 1kg can, 400g bellows and 400g cartridge.
Chuck Gripping Force 1.5 times
Service Life 3 times
Conforms to international standards for health, safety and the environment.
Loss of grip over time is reduced.

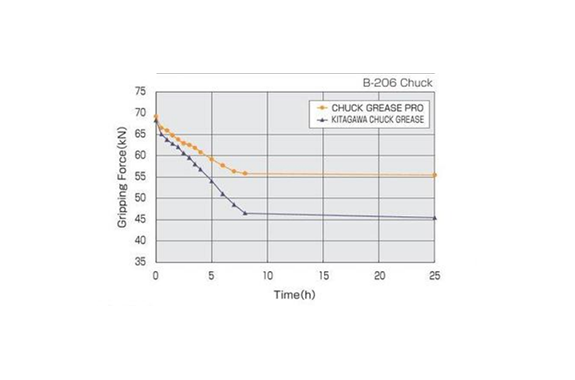

Refer or graph below for B206 chuck.
White grease is cleaner and reduces contamination
Various sizes available; 18kg can, 1kg can, 400g bellows and 400g cartridge
Chuck Grease Pro has been specially developed by Kitagawa by utilising long term experience in many applications.
The use of Chuck Grease Pro will extend life, increase gripping force and improve safety.
Color | Lemon yellow — yellow paste form |
Density g/cm3 | 1.12 |
| Temperature range * F CC) | 18-300 (-28-149) |
Friction factor | 0.06—0.1 (by LFW-i Rotary Reciprocating Test Machine) |
| NLGI Consistency | #2 |
JIS K-2220 PS consistency Mixing 60 times | 265-295 |

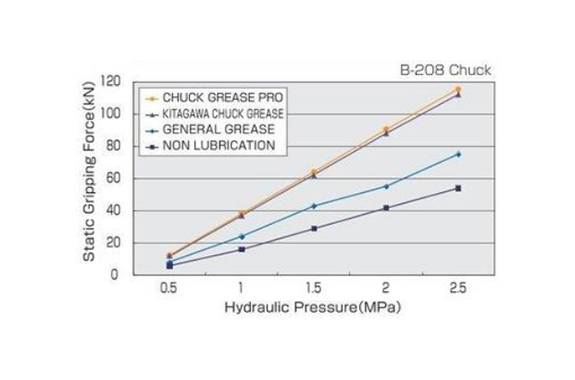

The graphs show the grease performance, not the condition of using Chuck
Please refer to Chuck specification table for the condition of Chuck
Using method
Grease the chuck with a commercial grease gun according to the instruction manual of the chuck as well as general grease.
